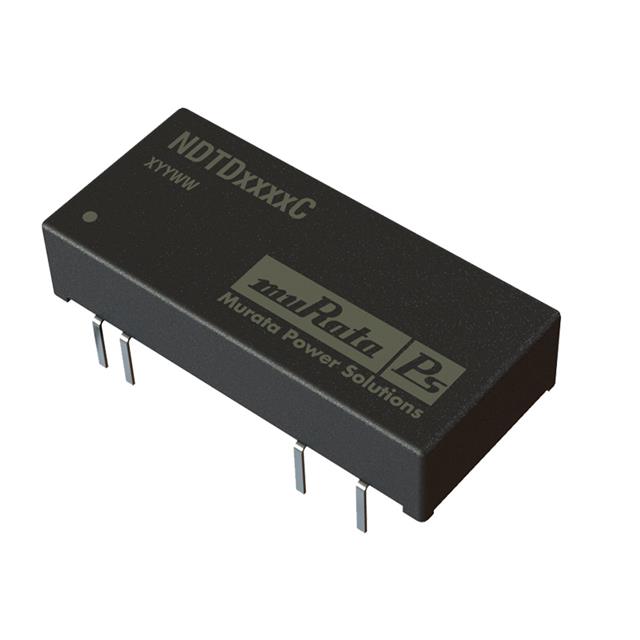

NDTD2412C

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-3.3V 3W

Part	Voltage - Output 2	Voltage - Output 1	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Isolation	Applications	Type	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)
Murata Power Solutions Inc. NDTD2403C	-3.3 V	3.3 V	2	454 mA	454 mA	Through Hole	1000 V	ITE (Commercial)	Isolated Module	73 %	18 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	24-DIP Module (600 mil, 8 Leads)	3 W	85 °C	-40 °C	36 V
Murata Power Solutions Inc. NDTD2415C	-15 V	15 V	2	100 mA	100 mA	Through Hole	1000 V	ITE (Commercial)	Isolated Module		18 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	24-DIP Module (600 mil, 8 Leads)	3 W	85 °C	-40 °C	36 V
Murata Power Solutions Inc. NDTD2412C	-12 V	12 V	2		125 mA	Through Hole	1000 V	ITE (Commercial)	Isolated Module		18 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	24-DIP Module (600 mil, 8 Leads)	3 W	85 °C	-40 °C	36 V	125 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
