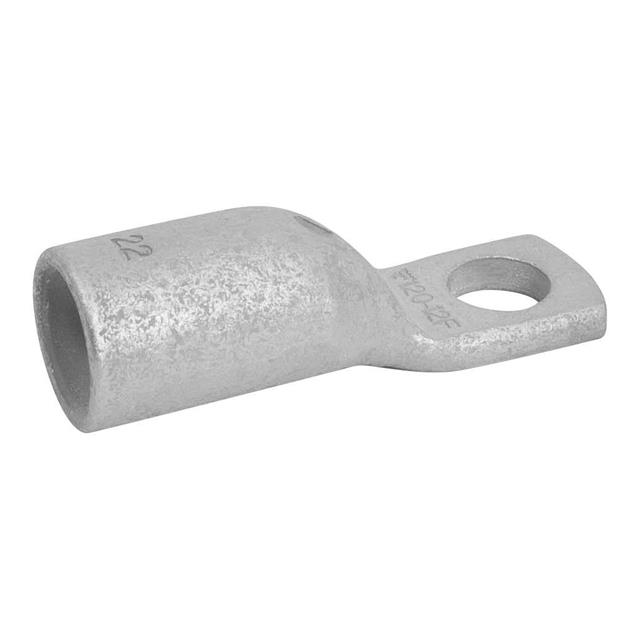

KRFS120-12
ActiveElpress Inc.
RING NARROW TONGUE 120MM M12
KRFS120-12
ActiveElpress Inc.
RING NARROW TONGUE 120MM M12
Description
General part information
KRFS120-12
Terminal Connector Rectangular Ring, Tubular 4 AWG M12 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRFS120-12 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 2.756 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud, M12 |
| Tab Thickness | 0.197 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 0.866 in |
| Wire Gauge | 4 AWG |
