3420-7

Active

BRADY

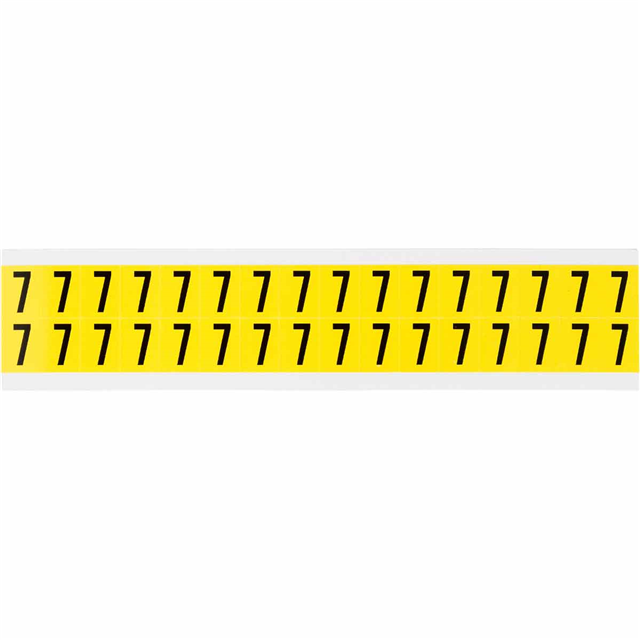

B498 N&L BLK/YEL 3420-7

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3420-7

Active

BRADY

B498 N&L BLK/YEL 3420-7

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.21

Description

General part information

3420 Series

B498 N&L BLK/YEL 3420-7

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3420-7	3420 Series

Application Specifics	Alpha/Numeric	Alpha/Numeric, Directionality, Notice
Applications	General	General
Arrangement	Text Only	Text Only, Symbol and Text
Color - Background	Yellow	Yellow
Color - Legend	Black	Black
Features	Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant	Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant
Language	English	English
Legend (Symbol Only)	False	False
Legend (Symbol Only)	-	Directional Arrow
Legend (Text)	7	X, M, Q, 3, S, P, G, 0 to 9, D, C, Arrow Symbol, A to Z, Z, 7, O, F, L, N, 1, T, B, U, K, A, W, E, R, J, H, I, V
Legend (Text)	-	0 - 9
Legend (Text)	-	True
Length	19.05 mm	19 - 19.05 mm
Length	0.75 in	0.748 - 0.75 in
Material - Body	Vinyl Cloth	Vinyl Cloth
Mounting Type	Adhesive	Adhesive
Print Type	Pre-Printed	Pre-Printed
Ratings	CSA, UL Rated	CSA, UL Rated
Shape	Rectangle	Rectangle
Width	-	0.551 in
Width	-	14 mm
Width [y]	14.3 mm	14.3 mm
Width [y]	0.563 in	0.563 in

3420 Series

B498 N&L BLK/YEL 3420-X

Part	Color - Legend	Shape	Language	Application Specifics	Mounting Type	Material - Body	Length	Length	Applications	Ratings	Features	Print Type	Width [y]	Width [y]	Arrangement	Legend (Text)	Color - Background	Width	Width	Legend (Text)
BRADY 3420-X	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	X	Yellow
BRADY 3420-M	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	M	Yellow
BRADY 3420-Q	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	Q	Yellow
BRADY 3420-5	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General		Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	3	Yellow
BRADY 3420-S	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	S	Yellow
BRADY 3420-P	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	P	Yellow
BRADY 3420-G	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	G	Yellow
BRADY 3420-# KIT	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19 mm	0.748 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Pre-Printed			Text Only	0 to 9	Yellow	0.551 in	14 mm
BRADY 3420-0	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only		Yellow			0
BRADY 3420-D	Black	Rectangle	English	Alpha/Numeric	Adhesive	Vinyl Cloth	19.05 mm	0.75 in	General	CSA, UL Rated	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Pre-Printed	14.3 mm	0.563 in	Text Only	D	Yellow
