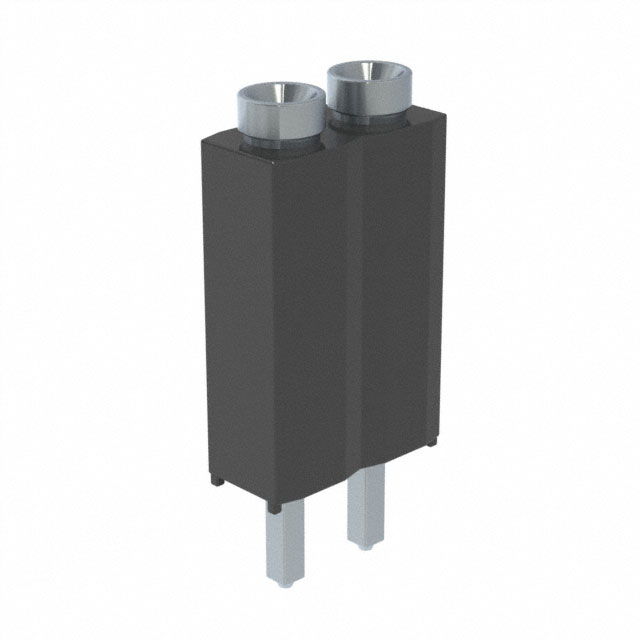

ESD-101-TT-03

Active

Samtec Inc.

CONN SOCKET 2POS TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESD-101-TT-03

Active

Samtec Inc.

CONN SOCKET 2POS TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESD-101-TT-03

Connector Type	Elevated Socket
Contact Finish - Post	Tin
Contact Length - Post	0.153 in
Contact Length - Post	3.89 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

ESD-101 Series

Part	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Insulation Height [z]	Insulation Height [z]	Insulation Color	Number of Positions	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Contact Finish - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESD-101-G-03	0.153 in	3.89 mm	Gold	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	Black	2	Push-Pull	Elevated Socket	10 çin	0.25 çm	Female Socket	Circular	Gold	2	10 çin	0.25 çm	Beryllium Copper	Through Hole	UL94 V-0	-55 °C	125 °C	All	Solder
Samtec Inc. ESD-101-TT-03	0.153 in	3.89 mm	Tin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	Black	2	Push-Pull	Elevated Socket			Female Socket	Circular		2			Beryllium Copper	Through Hole	UL94 V-0	-55 °C	125 °C	All	Solder
Samtec Inc. ESD-101-G-23	0.115 in	2.92 mm	Gold	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	Black	2	Push-Pull	Elevated Socket	10 çin	0.25 çm	Female Socket	Circular	Gold	2	10 çin	0.25 çm	Beryllium Copper	Through Hole	UL94 V-0	-55 °C	125 °C	All	Solder
Samtec Inc. ESD-101-G-05			Gold	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)			Black	2	Push-Pull	Elevated Socket	10 çin	0.25 çm	Female Socket	Circular	Gold	2	10 çin	0.25 çm	Beryllium Copper	Through Hole	UL94 V-0	-55 °C	125 °C	All	Solder	0.5 in	12.7 mm	0.165 in	4.19 mm
Samtec Inc. ESD-101-G-04	0.253 in	6.43 mm	Gold	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)			Black	2	Push-Pull	Elevated Socket	10 çin	0.25 çm	Female Socket	Circular	Gold	2	10 çin	0.25 çm	Beryllium Copper	Through Hole	UL94 V-0	-55 °C	125 °C	All	Solder	0.4 in	10.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ESD-101 Series

2 Position Elevated Socket Connector Through Hole Tin
