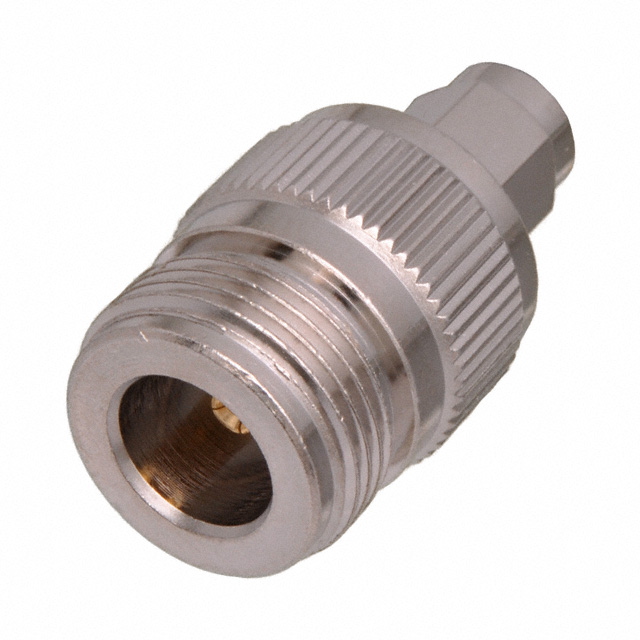

VA502
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT SMA TO N
Deep-Dive with AI
Search across all available documentation for this part.
VA502
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT SMA TO N
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VA502 |
|---|---|
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.33 | |
| 10 | $ 16.43 | |||
| 25 | $ 15.40 | |||
| 50 | $ 14.67 | |||
| 100 | $ 13.97 | |||
| 300 | $ 12.93 | |||
| 500 | $ 12.47 | |||
Description
General part information
VA502
Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
