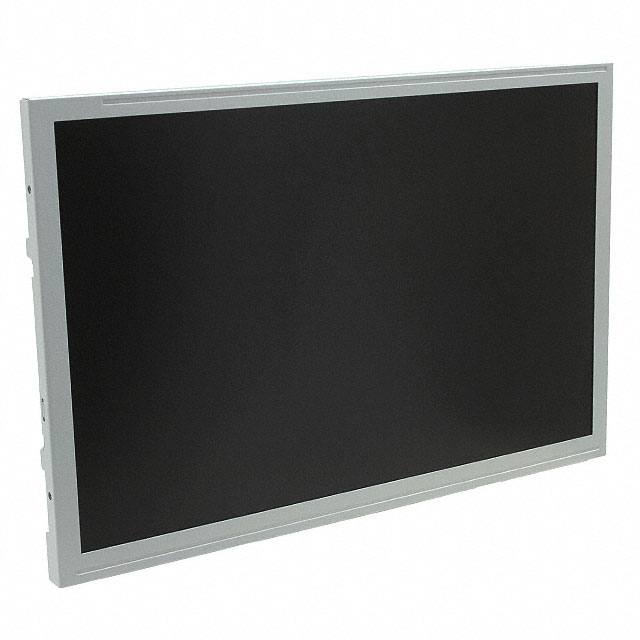

TCG101WXLPAANN-AN20

Active

Kyocera International, Inc.

LCD TFT 10.1" WXGA 500NITS

Search across all available documentation for this part.

Active

Kyocera International, Inc.

LCD TFT 10.1" WXGA 500NITS

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD TFT DIGITAL DISPLAY

Part	Interface	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Display Type	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Display Mode	Backlight	Viewing Area [y]	Viewing Area [x]	Dot Pitch [y]	Dot Pitch [z]
Kyocera International, Inc. TCG101WXLPAAFA-AA20
Kyocera International, Inc. TCG101WXLPANN-AN03	LVDS	256.54 mm	10.1 in	TFT - Color	800	1280	Blue, Green, Red	Transmissive	LED - White
Kyocera International, Inc. TCG101WXLPAANN-AN20	LVDS	256.54 mm	10.1 in	TFT - Color	800	1280	Blue, Green, Red	Transmissive	LED - White	135.6 mm	216.96 mm	0.06 mm	0.17 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 10.1" (256.54mm) 1280 x 800 (WXGA1)
