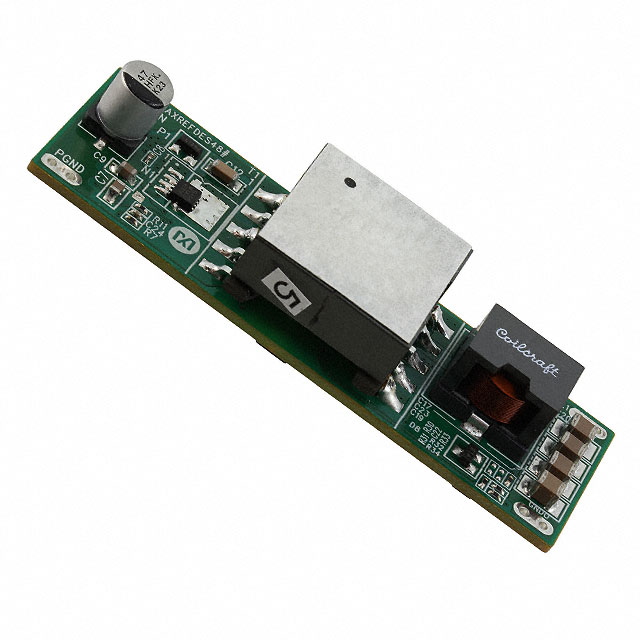

MAXREFDES48#
ActiveAnalog Devices Inc./Maxim Integrated
REF DESIGN EFD20 TRANSFORMER PS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXREFDES48#
ActiveAnalog Devices Inc./Maxim Integrated
REF DESIGN EFD20 TRANSFORMER PS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAXREFDES48# |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3.5 A |
| Frequency - Switching | 250 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 40 W |
| Regulator Topology | Forward Converter |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX17599 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.30 | |
MAXREFDES48 Series
REF DESIGN EFD20 TRANSFORMER PS
| Part | Voltage - Output | Supplied Contents | Main Purpose | Regulator Topology | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Power - Output | Utilized IC / Part | Frequency - Switching | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXREFDES48# | 12 V | Board(s) | DC/DC, Step Down | Forward Converter | Isolated | 1 | 36 V | 18 V | Fully Populated | 40 W | MAX17599 | 250 kHz | 3.5 A |
Description
General part information
MAXREFDES48 Series
MAX17599 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
