Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STTH3R02AFY | STTH3 Series |
|---|---|---|
| Current - Average Rectified (Io) | 3 A | 3 A |
| Current - Reverse Leakage @ Vr | 1.6 µA | 1.6 - 5 µA |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C | 175 °C |
| Operating Temperature - Junction [Min] | -40 °C | -40 °C |

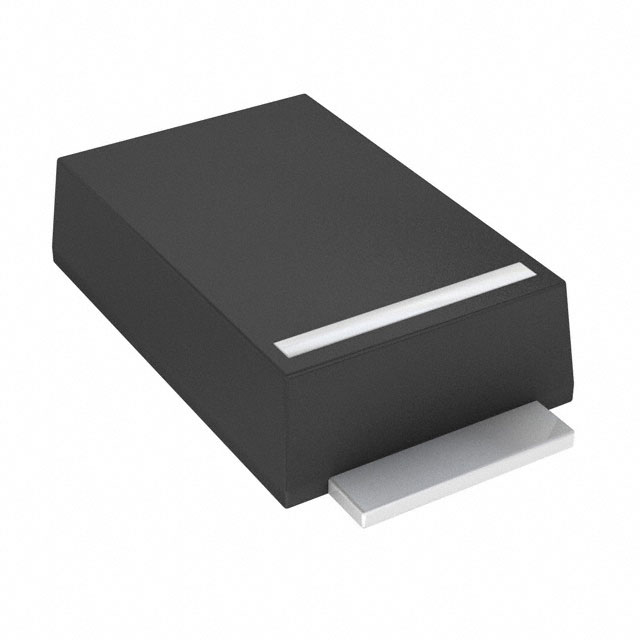

| Package / Case | SOD-128 | DO-201AD, Axial, SMC, DO-214AB, SOD-128, SMB Flat Leads, DO-221AA |
| Qualification | AEC-Q101 | AEC-Q101 |
| Reverse Recovery Time (trr) | 21 ns | 21 - 50 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOD128Flat | DO-201AD, SMC, SOD128Flat, SMBflat |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V | 200 - 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.02 V | 1 - 1.9 V |
STTH3 Series
200 V, 3 A High Effiency Ultrafast Diode
| Part | Current - Reverse Leakage @ Vr | Package / Case | Current - Average Rectified (Io) | Speed | Supplier Device Package | Technology | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Voltage - DC Reverse (Vr) (Max) [Max] | Operating Temperature - Junction [Max] | Reverse Recovery Time (trr) | Grade | Qualification | Operating Temperature - Junction [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STTH3R02RL | 3 µA | DO-201AD, Axial | 3 A | 200 mA, 500 ns | DO-201AD | Standard | 1 V | Through Hole | 200 V | 175 °C | 30 ns | |||
STMicroelectronics STTH3R04S | 5 µA | DO-214AB, SMC | 3 A | 200 mA, 500 ns | SMC | Standard | 1.5 V | Surface Mount | 400 V | 175 °C | 35 ns | |||
STMicroelectronics STTH3R02AFY | 1.6 µA | SOD-128 | 3 A | 200 mA, 500 ns | SOD128Flat | Standard | 1.02 V | Surface Mount | 200 V | 175 ░C | 21 ns | Automotive | AEC-Q101 | -40 °C |
STMicroelectronics STTH3R06UFY | 3 µA | DO-221AA, SMB Flat Leads | 3 A | 200 mA, 500 ns | SMBflat | Standard | 1.9 V | Surface Mount | 600 V | 175 ░C | 50 ns | Automotive | AEC-Q101 | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.12 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.52 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
Description
General part information
STTH3 Series
The STTH3R02 uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits.
Packaged in DO-201AD, DO-15, and SMC, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.
