MAXM22511EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR 2.5KVRMS COMPLETE ISOL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM22511EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR 2.5KVRMS COMPLETE ISOL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM22511EVKIT# | MAXM22511 Series |
|---|---|---|
| Data Rate | - | 25 MBd |
| Duplex | - | Full |
| Embedded | False | False |
| Function | RS-422, RS-485 | RS-422, RS-485 |
| Function | True | True |
| Mounting Type | - | Surface Mount |
| Number of Drivers/Receivers | - | 2 |
| Number of Drivers/Receivers | - | 2 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 ░C |
| Package / Case | - | 44-BFLGA |
| Protocol | - | RS422, RS485 |
| Receiver Hysteresis | - | 220 mV |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 44-LGA (9.35x11.5) |
| Type | Interface | Transceiver, Interface |
| Utilized IC / Part | MAXM22511 | MAXM22511 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 165.85 | |
MAXM22511 Series
IC TRANSCEIVER FULL 2/2 44LGA
| Part | Receiver Hysteresis | Data Rate | Supplier Device Package | Duplex | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Package / Case | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] | Protocol | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Function | Function | Embedded | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM22511GLH+ | 220 mV | 25 MBd | 44-LGA (9.35x11.5) | Full | Surface Mount | -40 °C | 105 ░C | Transceiver | 44-BFLGA | 2 | 2 | RS422, RS485 | 3.6 V | 3 V | |||||
Analog Devices Inc./Maxim Integrated MAXM22511GLH+T | 220 mV | 25 MBd | 44-LGA (9.35x11.5) | Full | Surface Mount | -40 °C | 105 ░C | Transceiver | 44-BFLGA | RS422, RS485 | 3.6 V | 3 V | |||||||
Analog Devices Inc./Maxim Integrated MAXM22511EVKIT# | Interface | Board(s) | RS-422, RS-485 | MAXM22511 |
Description
General part information
MAXM22511 Series

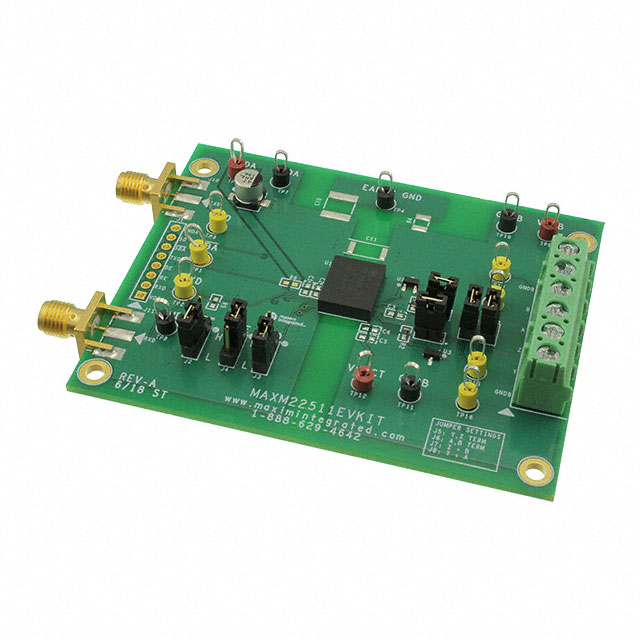

MAXM22511 Isolated, RS-422/RS-485 Interface Evaluation Board
