EG-2121CA 156.2500M-VHRALX
ActiveEPSON
XTAL OSC SO 156.2500MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.

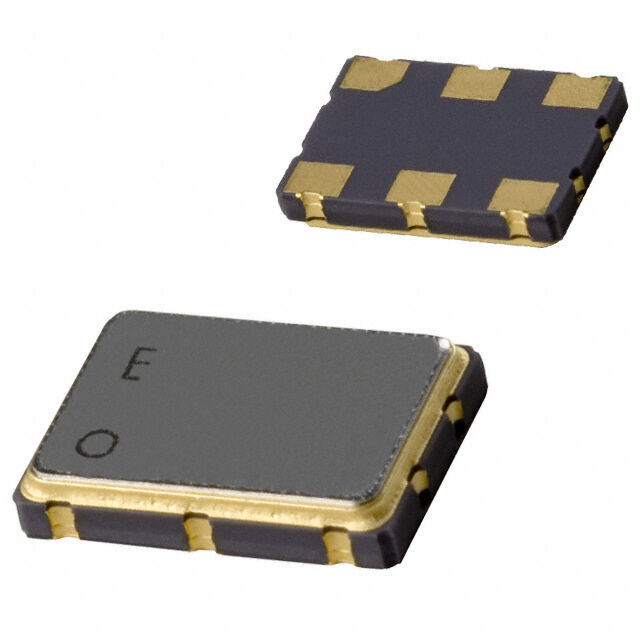

EG-2121CA 156.2500M-VHRALX
ActiveEPSON
XTAL OSC SO 156.2500MHZ LVDS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EG-2121CA 156.2500M-VHRALX | EG-2121CA Series |
|---|---|---|
| Base Resonator | Crystal | Crystal |
| Current - Supply (Disable) (Max) [Max] | 20 mA | 20 mA |
| Current - Supply (Max) [Max] | 30 mA | 30 - 80 mA |
| Frequency | 156.25 MHz | 95 - 350 MHz |
| Frequency Stability | 100 ppm | 50 - 100 ppm |
| Function | Enable/Disable | Enable/Disable |
| Height - Seated (Max) [Max] | 1.4 mm | 1.4 mm |
| Height - Seated (Max) [Max] | 0.055 in | 0.055 in |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -5 °C | -5 - 0 °C |
| Output | LVDS | LVPECL, LVDS |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension [x] | 7 mm | 7 mm |
| Size / Dimension [x] | 0.276 " | 0.276 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Supplier Device Package | 6-SMD (7x5) | 6-SMD (7x5) |
| Type | SO (SAW) | SO (SAW) |
| Voltage - Supply | 2.5 V | 2.5 V |
EG-2121CA Series
XTAL OSC SO 150.0000MHZ LVPECL
| Part | Function | Output | Base Resonator | Frequency | Mounting Type | Package / Case | Current - Supply (Disable) (Max) [Max] | Frequency Stability | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Voltage - Supply | Current - Supply (Max) [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Enable/Disable | LVPECL | Crystal | 150 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA | ||
Enable/Disable | LVDS | Crystal | 200 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 30 mA | ||
Enable/Disable | LVDS | Crystal | 150 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 50 ppm | 1.4 mm | 0.055 in | 85 °C | -5 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 30 mA | ||
Enable/Disable | LVPECL | Crystal | 250 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA | ||
Enable/Disable | LVPECL | Crystal | 312.5 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA | ||
Enable/Disable | LVPECL | Crystal | 155.52 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 50 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA | ||
Enable/Disable | LVDS | Crystal | 150 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 30 mA | ||
Enable/Disable | LVPECL | Crystal | 98.304 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA | ||
Enable/Disable | LVDS | Crystal | 250 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 50 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 30 mA | ||
Enable/Disable | LVPECL | Crystal | 95 MHz | Surface Mount | 6-SMD, No Lead | 20 mA | 100 ppm | 1.4 mm | 0.055 in | 70 °C | 0 °C | 7 mm | 5 mm | 0.276 " | 0.197 " | SO (SAW) | 2.5 V | 80 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 23.59 | |
Description
General part information
EG-2121CA Series
156.25 MHz SO (SAW) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
