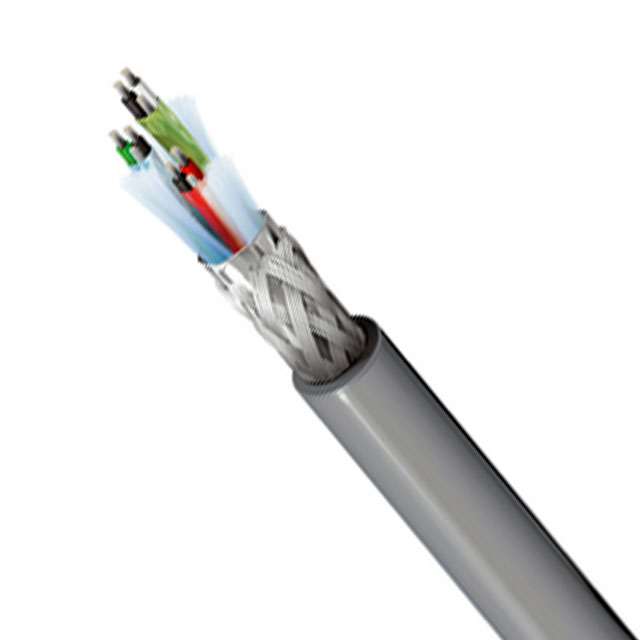

8163 060100
ActiveBelden Inc.
MULTI-PAIR 6CON 24AWG CHROM 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8163 060100
ActiveBelden Inc.
MULTI-PAIR 6CON 24AWG CHROM 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8163 060100 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 9.12 mm |
| Jacket (Insulation) Diameter [diameter] | 0.359 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.048 in |
| Jacket (Insulation) Thickness | 1.219 mm |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style 2493 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1077.69 | |
| 3 | $ 997.01 | |||
| 5 | $ 962.43 | |||
| 7 | $ 939.38 | |||
| 10 | $ 916.33 | |||
Description
General part information
8163 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
