Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1985030 | PTSA 1,5 Series |
|---|---|---|
| Color | Green | Green, Yellow |
| Current | 2 A | 2 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | 135 ° | 135 ° |
| Mating Orientation | 45 ° | 45 ° |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 3.5 mm | 3.5 mm |
| Pitch [x] | 0.138 in | 0.138 in |
| Positions Per Level | 9 | 2 - 23 |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp |
PTSA 1,5 Series

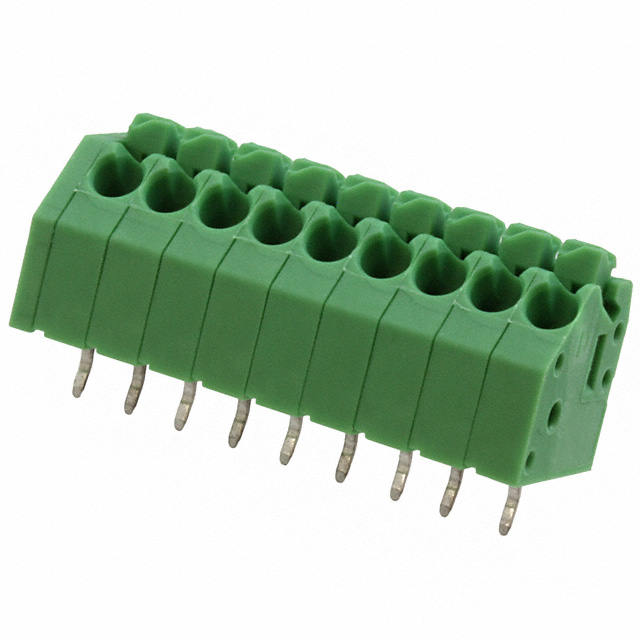

Fixed Terminal Blocks PTSA 1.5/23-3.5-F
| Part | Voltage | Wire Termination | Housing Material | Mounting Type | Number of Levels | Mating Orientation | Mating Orientation | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Current | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1985030 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 9 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985357 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 18 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1701057 | 300 V | Screwless - Spring Cage, Tension Clamp | Through Hole | 1 | 135 ° | 45 ° | 2 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Yellow | |
Phoenix Contact 1985140 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 20 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985179 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 23 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985234 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 6 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PTSA 1,5 Series
Fixed Terminal Blocks PTSA 1.5/23-3.5-F
