VC18620350
ObsoleteVisual Communications Company - VCC
LED T-3 1/4 RED MULTI 24V BAY
VC18620350
ObsoleteVisual Communications Company - VCC
LED T-3 1/4 RED MULTI 24V BAY
Description
General part information
VC18620350

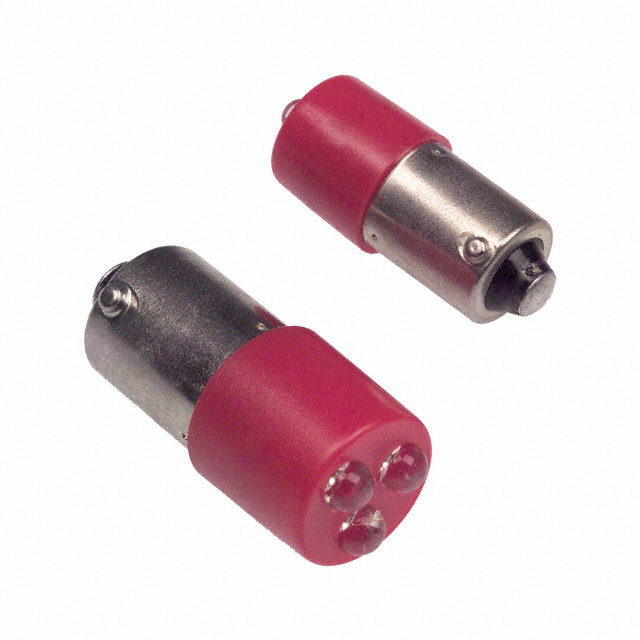

LED Lamp Replacement Red (x 3) Bayonet 24V T - 3 1/4
Technical Specifications
Parameters and characteristics for this part
| Specification | VC18620350 |
|---|---|
| Applications | Indicator Lights, Incandescent Replacements |
| Base Type | Bayonet |
| Can Replace Lamps | Multiple Bayonet Base Lamps |
| Color | Red |
| Color Count | 3 count |
| Configuration | Round |
| Configuration Count | 3 |
| Millicandela Rating (Per Unit) | 400 mcd |
| Millicandela Rating (Quantity) | 3 |
| Size / Dimension | T |
| Size / Dimension Length | 3.25 |
| Size / Dimension Thickness | 3.25 |
| Voltage - Forward (Vf) (Typ) | 24 VDC |
| Wavelength | 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
