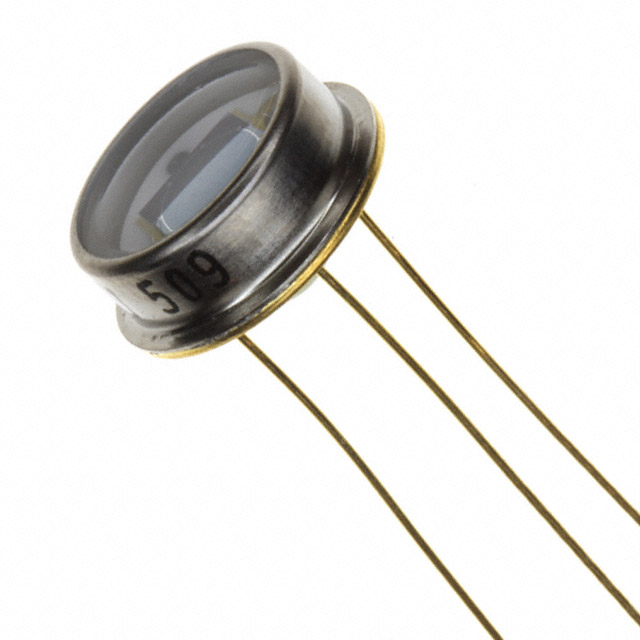

200-11-31-241

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO8

Search across all available documentation for this part.

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO8

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 660NM TO8

Part	Operating Temperature [Max]	Operating Temperature [Min]	Responsivity @ nm	Viewing Angle	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Min]	Spectral Range [Max]	Current - Dark (Typ)	Active Area	Diode Type	Wavelength	Color - Enhanced	Mounting Type	Response Time
Advanced Photonix 200-11-21-241	125 °C	-40 °C	0.55 A/W	95 °	75 V	350 nm	1100 nm	6.5 nA	20.27 mm²	PIN	660 nm	Red	Through Hole
Advanced Photonix 200-11-31-241	125 °C	-40 °C	0.55 A/W	95 °	75 V	350 nm	1100 nm	50 nA	20.27 mm²	PIN	660 nm	Red	Through Hole	8 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 145.34

General part information

Photodiode 660nm 8ns 95°
