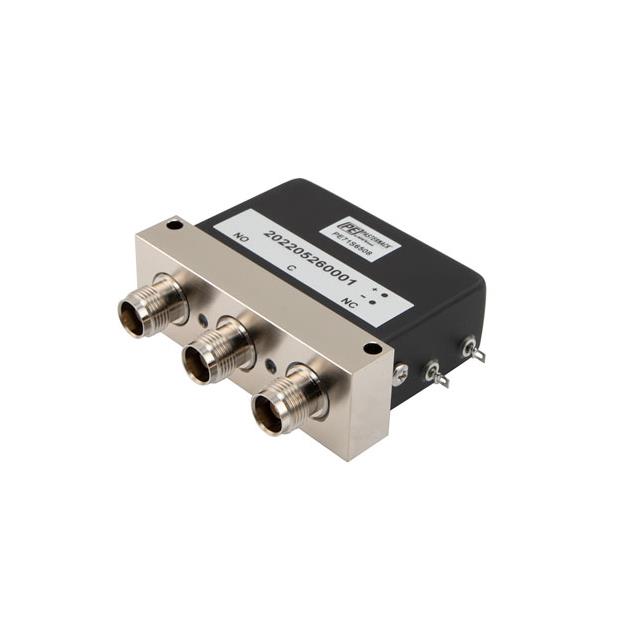

PE71S6508
ActivePasternack
SPDT ELECTROMECHANICAL RELAY FAI
PE71S6508
ActivePasternack
SPDT ELECTROMECHANICAL RELAY FAI
Description
General part information
PE71S6508
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S6508 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 12.4 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB |
| Isolation | 80 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 12 GHz |
| Topology | Absorptive |
| Voltage - Supply | 28 V |
