E3MRA

Active

Switchcraft Inc.

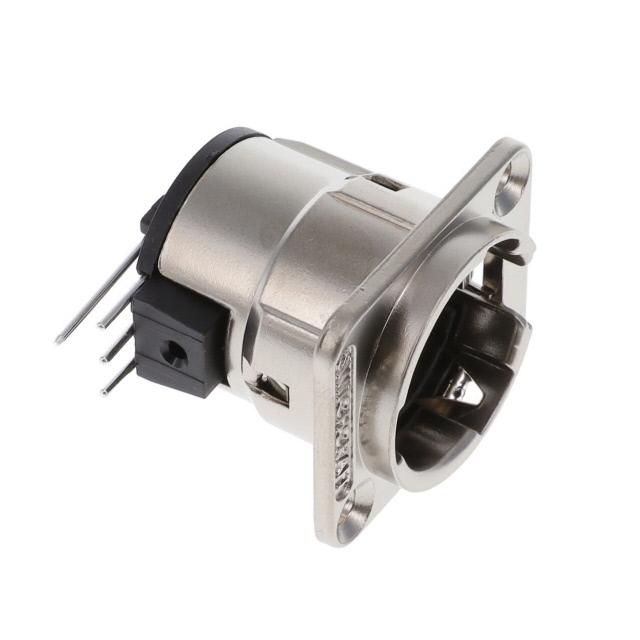

CONN RCPT MALE XLR 3P SILV SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SILV SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E3MRA	E3MR Series

Applications	Audio, Instrumentation	Audio, Instrumentation
Color	Silver	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Insert
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide, Ground	Board Guide, Ground, Insert Only, Requires Shell
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT MALE XLR 3P SILV SLDR

Part	Insert Material	Features	Mounting Feature	Connector Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Contact Material	Termination	Shielding	Shell Material	Shell Size - Insert	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Primary Material	Shell Finish	Mounting Type
Switchcraft Inc. E3MRA	Thermoplastic	Board Guide, Ground	Flange	Male Pins, Receptacle	Audio, Instrumentation	85 °C	-55 °C	Keyed	Silver	Copper Alloy	Solder	Shielded	Zinc Die Cast	XLR	Silver	15 A	Latch Lock	Metal	Nickel	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. E3MRABAU	Thermoplastic	Board Guide, Ground	Flange	Male Pins, Receptacle	Audio, Instrumentation	85 °C	-55 °C	Keyed	Black	Copper Alloy	Solder	Shielded	Zinc Die Cast	XLR	Gold	15 A	Latch Lock	Metal	Chrome	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. E3MRAQG	Thermoplastic	Insert Only, Requires Shell		Insert, Male Pins	Audio, Instrumentation	85 °C	-55 °C	Keyed		Copper Alloy	Solder			XLR	Silver	15 A				Through Hole, Right Angle
Switchcraft Inc. E3MRAAUQG	Thermoplastic	Insert Only, Requires Shell		Insert, Male Pins	Audio, Instrumentation	85 °C	-55 °C	Keyed		Copper Alloy	Solder			XLR	Gold	15 A				Through Hole, Right Angle
Switchcraft Inc. E3MRAAU	Thermoplastic	Board Guide, Ground	Flange	Male Pins, Receptacle	Audio, Instrumentation	85 °C	-55 °C	Keyed	Silver	Copper Alloy	Solder	Shielded	Zinc Die Cast	XLR	Gold	15 A	Latch Lock	Metal	Nickel	Panel Mount, Right Angle, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
