0008050302

Obsolete

Molex

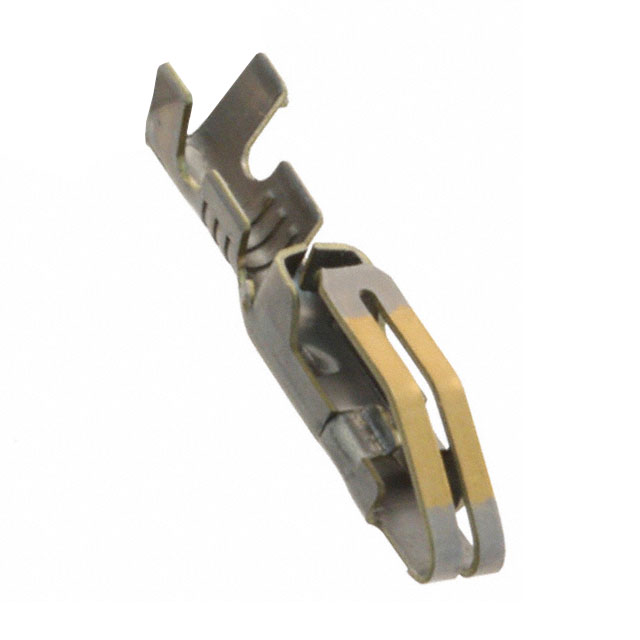

TERM EDGE KK 18-24AWG CRIMP GOLD

Search across all available documentation for this part.

Obsolete

Molex

TERM EDGE KK 18-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

TERM EDGE KK 18-24AWG CRIMP GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Contact Finish
Molex 0008050302	15 µin	0.38 µm	Socket	Brass	24 AWG	17.5 AWG	Crimp	Gold
Molex 0008050304	15 µin	0.38 µm	Socket	Brass	30 AWG	24 AWG	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Edge Terminal Socket 18-24 AWG Crimp Gold

Technical documentation and resources

No documents available
