2-2355088-3
ActiveTE Connectivity AMP Connectors

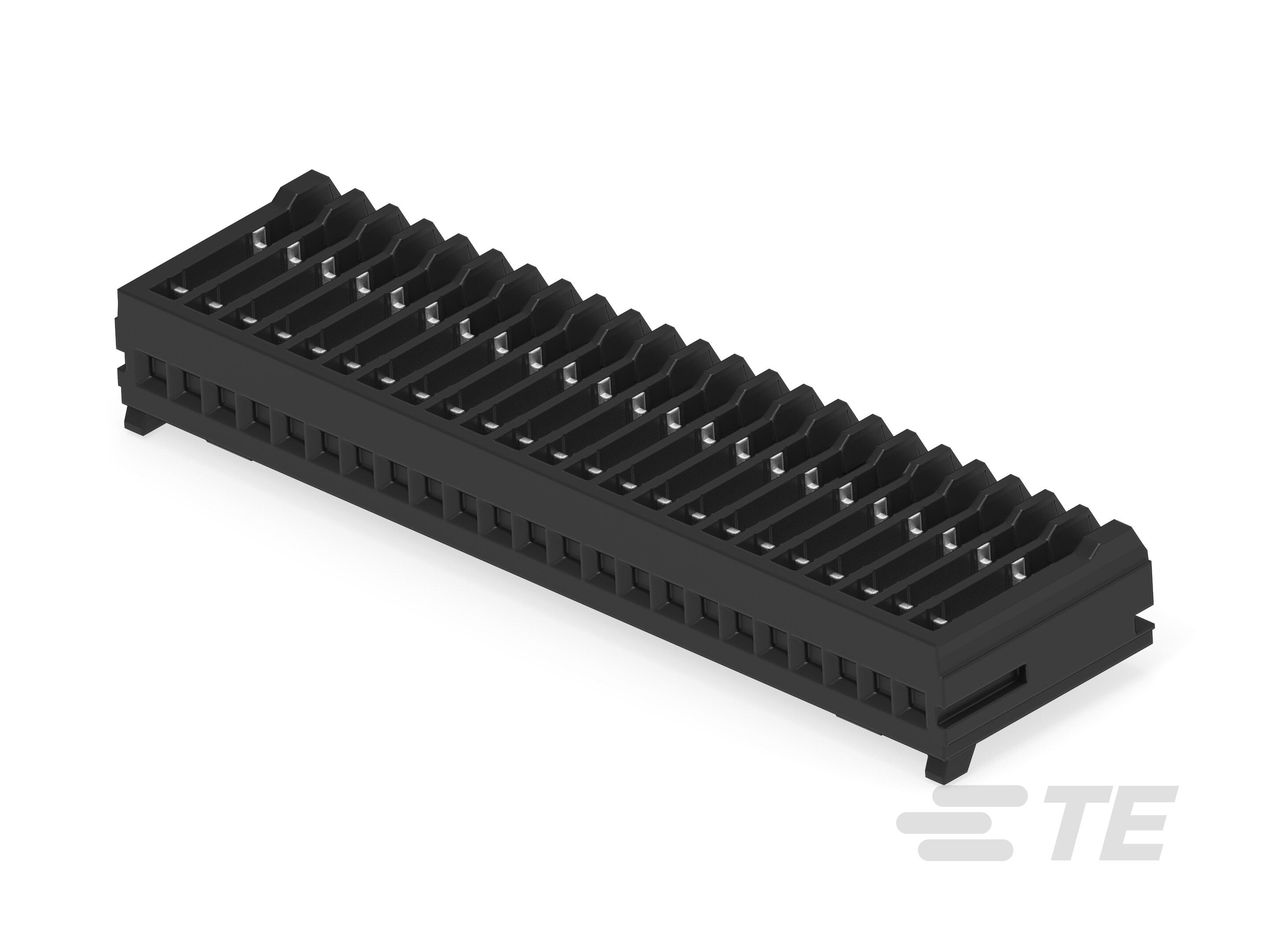

MICRO CT CONN MT REC ASSEMBLY 23P
2-2355088-3
ActiveTE Connectivity AMP Connectors
MICRO CT CONN MT REC ASSEMBLY 23P
Description
General part information
2355088 Series
Connector Assembly, Receptacle, Wire-to-Board, 23 Position, 1.2 mm [.047 in] Centerline, Insulation Displacement (IDC), 1 Row, Black, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2355088-3 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 23 |
| Number of Rows | 1 |
| Pitch | 0.047 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
