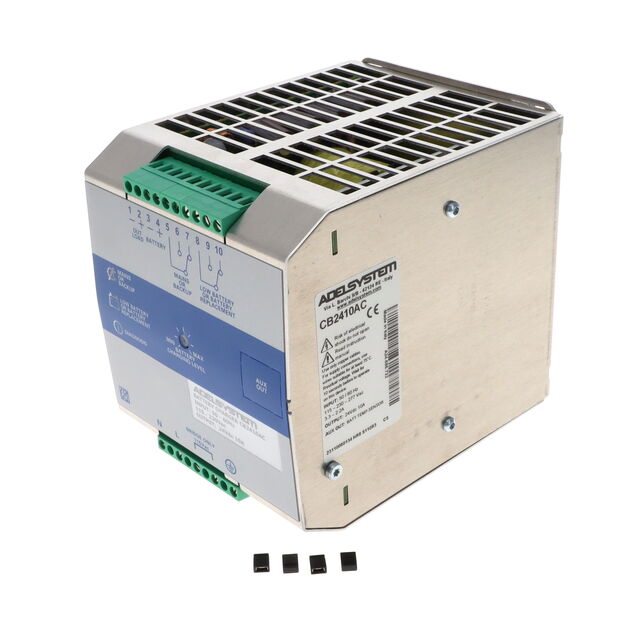

CB2410A

Active

Altech Corporation

BATT CHARGER ENCLOSED 28.8V 10A

Search across all available documentation for this part.

Active

Altech Corporation

BATT CHARGER ENCLOSED 28.8V 10A

Technical Specifications

Parameters and characteristics for this part

BATT CHARGER ENCLOSED 28.8V 10A

Part	Features	Number of Cells	Type	Charge Time	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Approval Agency	Battery Chemistry	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Battery Cell Size	Charge Current - Max [Max]	Voltage - Nominal	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Altech Corporation CB2410A	LED Indicator	1	Enclosed	15 Hrs	135 VAC, 305 VAC	90 VAC, 180 VAC	Terminal Block	CE	Lead Acid, Nickel Cadmium	100.08 mm	4.53 "	135.13 mm	115.06 mm	3.94 in	5.32 in	24 V	10 A	28.8 V	70 °C	-25 °C	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed Battery Charger 28.8V 10A 24V
