Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0034.7305 | MSTU 250 Series |
|---|---|---|
| Approval Agency | cULus | cULus |
| Breaking Capacity @ Rated Voltage | 50 A | 50 A |
| Current Rating (Amps) | 100 mA | 2.5 - 125 mA |
| Fuse Type | Board Mount | Board Mount |
| Melting I˛t | - | 67.2 |
| Melting I²t | 0.0456 | 0.0456 - 40.9 I²t |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Vertical, Radial, Can | Vertical, Radial, Can |
| Response Time | Slow Blow | Slow Blow |
| Size / Dimension [diameter] | 0.335 " | 0.335 " |
| Size / Dimension [diameter] | 8.5 mm | 8.5 mm |
| Size / Dimension [z] | 0.335 " | 0.335 " |
| Size / Dimension [z] | 8.5 mm | 8.5 mm |
| Voltage Rating - AC | 250 V | 250 V |
MSTU 250 Series

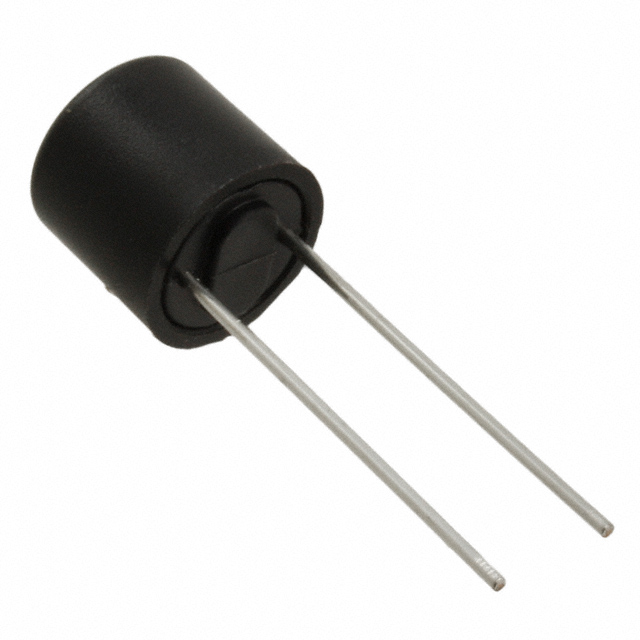

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/
| Part | Fuse Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Current Rating (Amps) | Response Time | Voltage Rating - AC | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 0034.7206 | Board Mount | 85 °C | -40 °C | Can, Radial, Vertical | 50 A | 0.0567 I²t | cULus | Through Hole | 0.335 " | 8.5 mm | 0.335 " | 8.5 mm | 125 mA | Slow Blow | 250 V | |
SCHURTER Inc. 0034.7305 | Board Mount | 85 °C | -40 °C | Can, Radial, Vertical | 50 A | 0.0456 | cULus | Through Hole | 0.335 " | 8.5 mm | 0.335 " | 8.5 mm | 100 mA | Slow Blow | 250 V | |
SCHURTER Inc. 0034.7221 | Board Mount | 85 °C | -40 °C | Can, Radial, Vertical | 50 A | cULus | Through Hole | 0.335 " | 8.5 mm | 0.335 " | 8.5 mm | 4 A | Slow Blow | 250 V | 67.2 | |
SCHURTER Inc. 0034.7219 | Board Mount | 85 °C | -40 °C | Can, Radial, Vertical | 50 A | 40.9 | cULus | Through Hole | 0.335 " | 8.5 mm | 0.335 " | 8.5 mm | 2.5 A | Slow Blow | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MSTU 250 Series
"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/
