APM064GMFAN-6BTM1
ObsoleteApacer Memory America
SSD 64GB MSATA MLC SATA III 3.3V
APM064GMFAN-6BTM1
ObsoleteApacer Memory America
SSD 64GB MSATA MLC SATA III 3.3V
Description
General part information
APM064GMFAN-6BTM1

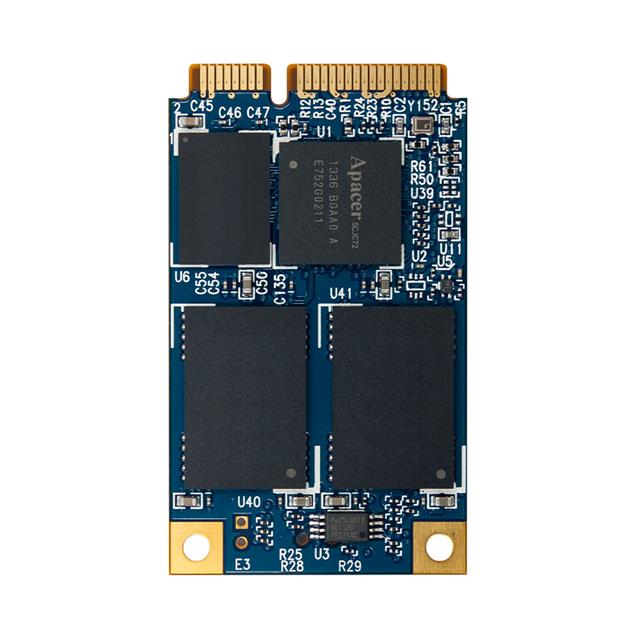

Solid State Drive (SSD) FLASH - NAND (MLC) 64GB SATA III mSATA 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | APM064GMFAN-6BTM1 |
|---|---|
| Current - Max | 345 mA |
| Form Factor | mSATA |
| Memory Size | 512 Gbit |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 3.8 mm |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 29.85 mm |
| Speed - Read | 405 MB/s |
| Speed - Write | 85 MB/s |
| Type | SATA III |
| Voltage - Supply | 3.3 V |
