M3CCK-3436R
Active3M
IDC CABLE - MKC34K/MC34M/MKC34K
Deep-Dive with AI
Search across all available documentation for this part.
M3CCK-3436R
Active3M
IDC CABLE - MKC34K/MC34M/MKC34K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3CCK-3436R | M3CCK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | - | 1.52 - 508 mm |
| Length | - | 1.67 - 5 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 34 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3CCK Series
IDC CABLE - MKC60K/MC60F/MKC60K
| Part | Length | Length | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Type | Cable Termination | Shielding | Number of Rows | Features | Number of Positions | Color | Pitch - Cable | Pitch - Cable | Length | Length | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
508 mm | 1.67 ft | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 60 | Multiple, Twisted Pair (Flat) | 0.05 " | 1.27 mm | ||||||
152.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 50 | Multiple, Ribbon | 0.05 " | 1.27 mm | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 20 | 0.05 " | 1.27 mm | 457.2 mm | 1.5 ft | |||||||
152.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 30 | 0.05 " | 1.27 mm | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 60 | 0.05 " | 1.27 mm | 914.4 mm | 3 ft | |||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 50 | 0.05 " | 1.27 mm | 914.4 mm | 3 ft | |||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 50 | Multiple, Ribbon | 0.05 " | 1.27 mm | 914.4 mm | 3 ft | ||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 40 | 0.05 " | 1.27 mm | 914.4 mm | 3 ft | |||||||
152.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 26 | 0.05 " | 1.27 mm | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Gold | Socket to Socket | IDC | Unshielded | 2 | Polarizing Key | 20 | Multiple, Ribbon | 0.05 " | 1.27 mm | 914.4 mm | 3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.75 | |
| 10 | $ 20.63 | |||
| 25 | $ 18.68 | |||
| 50 | $ 17.37 | |||
| 100 | $ 16.18 | |||
| 250 | $ 14.78 | |||
| 500 | $ 13.83 | |||
Description
General part information
M3CCK Series

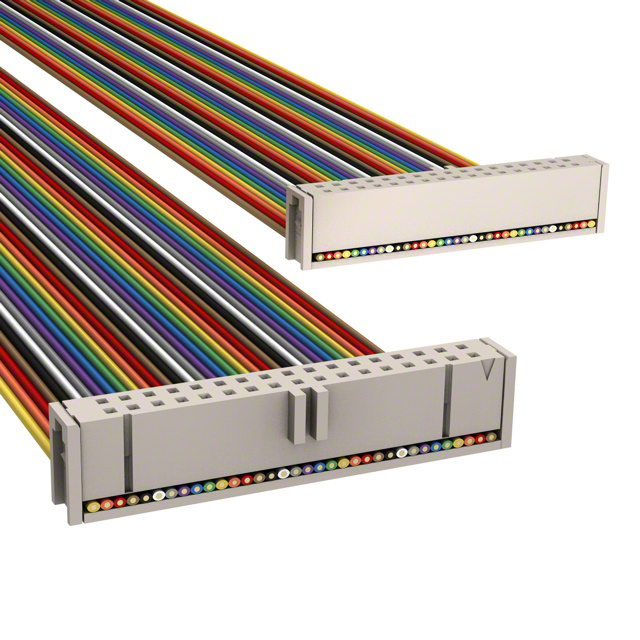

34 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
