917-83-104-41-053101

Active

Preci-Dip

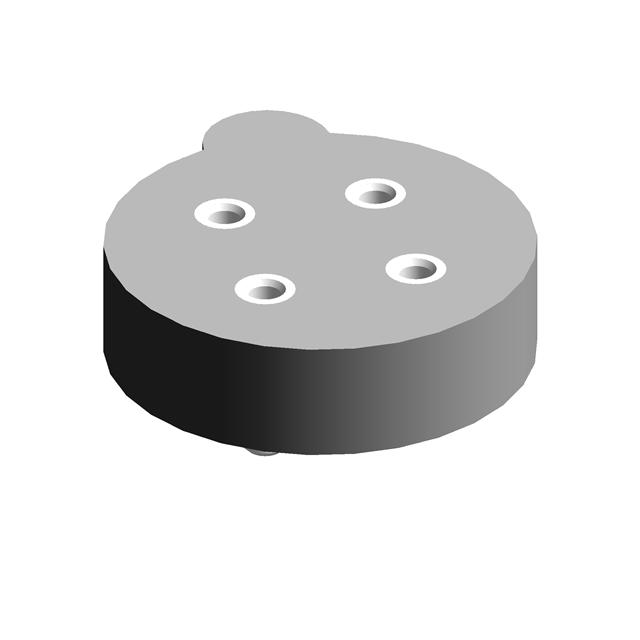

CONN TRANSIST TO-5 4POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

917-83-104-41-053101

Active

Preci-Dip

CONN TRANSIST TO-5 4POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	917-83-104-41-053101	917-83 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	29.5 Áin	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám	0.75 Ám
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	4	3 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Termination Post Length	0.055 in	0.055 - 0.125 in
Termination Post Length	1.4 mm	1.4 - 3.18 mm
Type	Transistor, TO-5	Transistor, TO-5

917-83 Series

CONN TRANSIST TO-5 4POS GOLD

Part	Type	Contact Material - Post [custom]	Termination	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Contact Finish - Mating	Contact Material - Mating	Contact Finish - Post	Housing Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Preci-Dip 917-83-104-41-053101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	4	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-108-41-053101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	8	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-104-41-005101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	4	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-103-41-053101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	3	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-208-41-053101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	8	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-210-41-005101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	10	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-208-41-005101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	8	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C
Preci-Dip 917-83-103-41-005101	Transistor, TO-5	Brass	Solder	1 A	UL94 V-0	10 mOhm	3	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Gold	Beryllium Copper	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Through Hole	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1100	$ 0.79

Description

General part information

917-83 Series

4 (Round) Pos Transistor, TO-5 Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
