FM51OM1004
ActiveFairview Microwave
ANTENNA TYPE N JACK 2.4 MHZ-5.85
FM51OM1004
ActiveFairview Microwave
ANTENNA TYPE N JACK 2.4 MHZ-5.85
Description
General part information
FM51OM1004

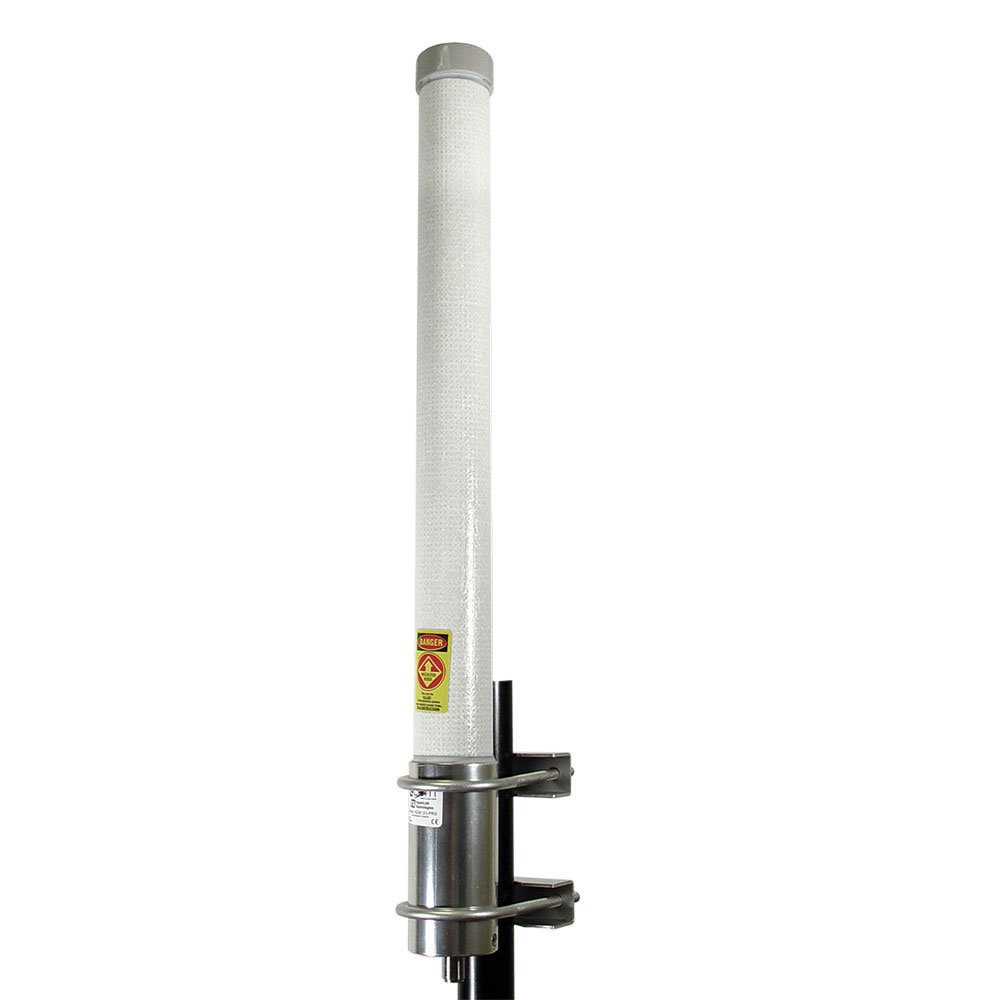

RF ANTENNA 802.11a/b/g/ac, ISM, Wi-Fi Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM51OM1004 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | ISM, Wi-Fi, 802.11a/b/g/ac |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 4.125 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 6 dBi |
| Height (Max) | 32.8 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
