6561358304F - Series-656(Orn-flattop)

6561358304F

Active

DIALIGHT

LED PNL IND OR 37.5V IP67/NEMA4X

Deep-Dive with AI

Search across all available documentation for this part.

6561358304F - Series-656(Orn-flattop)

6561358304F

Active

DIALIGHT

LED PNL IND OR 37.5V IP67/NEMA4X

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	57	$ 14.83

Description

General part information

6561358 Series

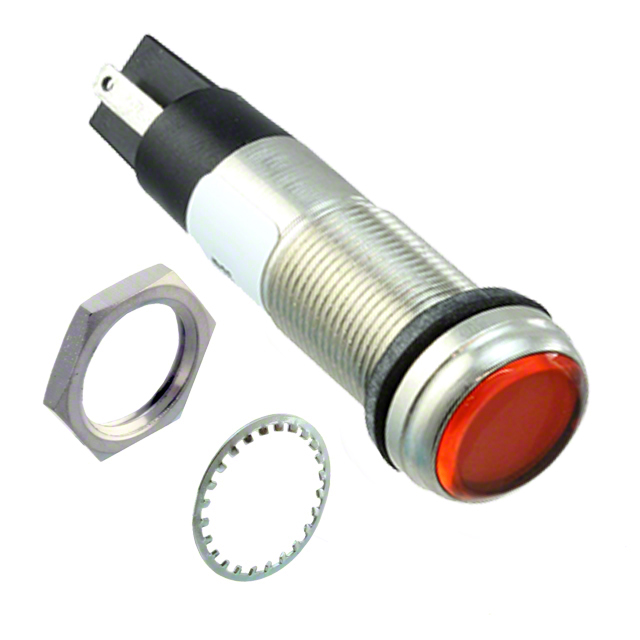

LED Panel Indicator Orange Clear 37.5V 8.5mA Quick Connect

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6561358304F	6561358 Series

	-	-
Current	8.5 mA	8.5 mA
Ingress Protection	NEMA 4X, IP67	NEMA 4X, IP67
Lamp Color	Orange	Orange
Lens Size [diameter]	16.5 mm Dia	16.5 mm Dia
Lens Transparency	Clear	Clear
Millicandela Rating	800 mcd	800 mcd
Panel Cutout Dimensions	12.7 mm	12.7 mm
Panel Cutout Dimensions	0.5 in	0.5 in
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Quick Connect	Quick Connect
Type	LED	LED
Voltage	37.5 V	37.5 V

6561358 Series

PANEL IND 37.5V 1/2" FLT W/TERM

Part	Ratings	Millicandela Rating	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Type	Panel Cutout Shape	Voltage	Current	Lens Size [diameter]	Lens Transparency	Lamp Color
DIALIGHT 6561358204F
DIALIGHT 6561358203F
DIALIGHT 6561358304F	DC	800 mcd	Quick Connect	12.7 mm	0.5 in	IP67, NEMA 4X	LED	Round	37.5 V	8.5 mA	16.5 mm Dia	Clear	Orange
