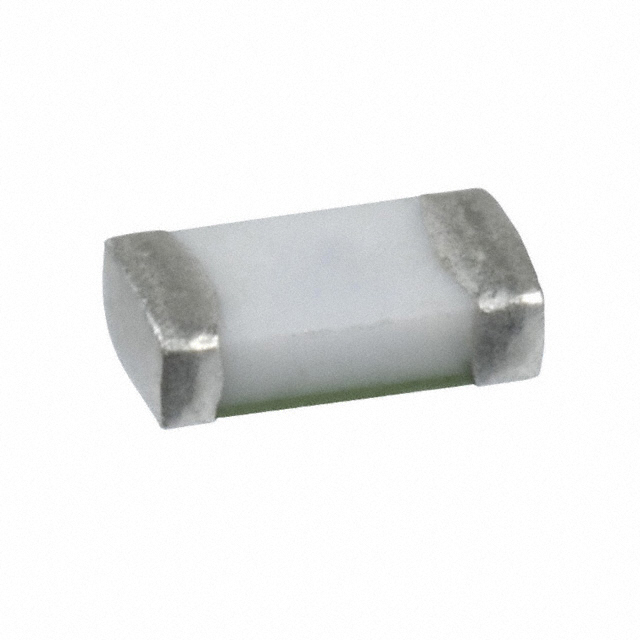

TR/3216FF-1.5A
ObsoleteEaton - Electronics Division
FUSE BRD MT 1.5A 32VAC 63VDC
TR/3216FF-1.5A
ObsoleteEaton - Electronics Division
FUSE BRD MT 1.5A 32VAC 63VDC
Description
General part information
TR/3216FF-1.5A
1.5 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR/3216FF-1.5A |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 50 A |
| Current Rating | 1.5 A |
| DC Cold Resistance | 0.119 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.047 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.035 in |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - AC | 32 VAC |
| Voltage Rating - DC | 63 V |
