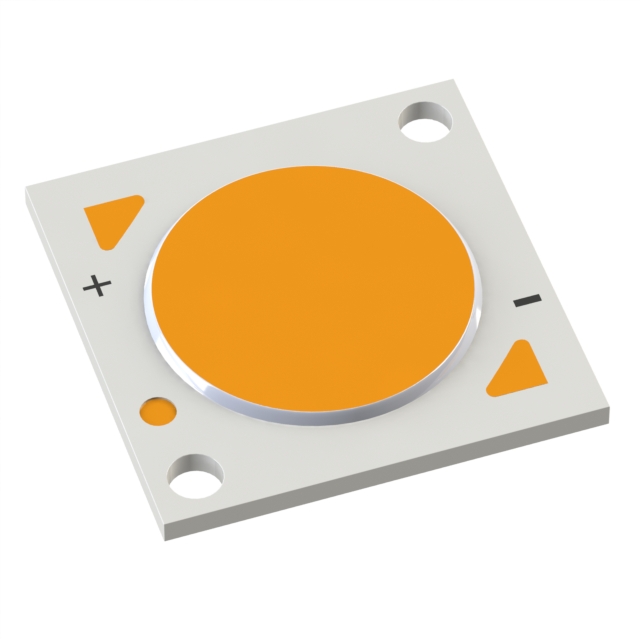

CLM-9-35-95-18-TA60-F7-3

Active

Luminus Devices Inc.

LED COB CLM-9 WARM WHT SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM-9-35-95-18-TA60-F7-3

Active

Luminus Devices Inc.

LED COB CLM-9 WARM WHT SQ 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLM-9-35-95-18-TA60-F7-3

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	1.6 A
Current - Test	500 mA
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.6 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	16.4 V

CLM-9 Series

Part	Light Emitting Surface (LES) [diameter]	Type	Current - Test	Height [z]	Color	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	CCT (K)	Lens Type	Lumens/Watt @ Current - Test	Temperature - Test	Luminous Flux @ Current/Temperature
Luminus Devices Inc. CLM-9-57-70-18-TA60-F7-3	9.6 mm	Chip On Board (COB)	500 mA	1.4 mm	Cool White	1.6 A	70	120 °	16.4 V	Square	5700 K	Flat
Luminus Devices Inc. CLM-9-40-80-18-TA60-F7-2	9.6 mm	Chip On Board (COB)	500 mA	1.4 mm	Neutral White	1.6 A	80	120 °	16.4 V	Square	4000 K	Flat
Luminus Devices Inc. CLM-9-27-80-36-TA60-F7-3	9.6 mm	Chip On Board (COB)	250 mA	1.4 mm	Warm White	800 mA	80	120 °	32.8 V	Square	2700 K	Flat	159 lm/W	85 °C	1305 lm
Luminus Devices Inc. CLM-9-57-80-36-TA60-F7-3	9.6 mm	Chip On Board (COB)	250 mA	1.4 mm	Cool White	800 mA	80	120 °	32.8 V	Square	5700 K	Flat		85 °C
Luminus Devices Inc. CLM-9-27-95-36-TA60-F7-2	9.6 mm	Chip On Board (COB)	250 mA	1.4 mm	Warm White	800 mA	95	120 °	32.8 V	Square	2700 K	Flat	118 lm/W	85 °C	970 lm
Luminus Devices Inc. CLM-9-50-90-36-TA60-F7-3	9.6 mm	Chip On Board (COB)	250 mA	1.4 mm	Cool White	800 mA	90	120 °	32.8 V	Square		Flat	154 lm/W	85 °C	1260 lm
Luminus Devices Inc. CLM-9-27-95-18-TA60-F7-2	9.6 mm	Chip On Board (COB)	500 mA	1.4 mm	Warm White	1.6 A	95	120 °	16.4 V	Square	2700 K	Flat
Luminus Devices Inc. CLM-9-35-95-18-TA60-F7-3	9.6 mm	Chip On Board (COB)	500 mA	1.4 mm	Warm White	1.6 A	95	120 °	16.4 V	Square	3500 K	Flat
Luminus Devices Inc. CLM-9-50-80-18-TA60-F7-2	9.6 mm	Chip On Board (COB)	500 mA	1.4 mm	Cool White	1.6 A	80	120 °	16.4 V	Square	5000 K	Flat
Luminus Devices Inc. CLM-9-27-90-36-TA60-F7-3	9.6 mm	Chip On Board (COB)	250 mA	1.4 mm	Warm White	800 mA	90	120 °	32.8 V	Square	2700 K	Flat	141 lm/W	85 °C	1160 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1800	$ 1.93

Description

General part information

CLM-9 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CLM-9 Gen 6 White, Warm Square
