1457K1601

Active

Hammond Manufacturing

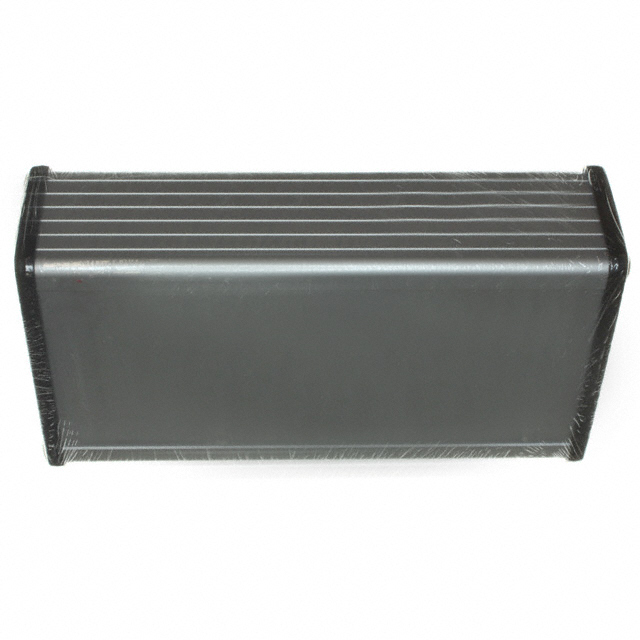

BOX ALUM NATURAL 6.67"L X 3.43"W

Deep-Dive with AI

Search across all available documentation for this part.

1457K1601

Active

Hammond Manufacturing

BOX ALUM NATURAL 6.67"L X 3.43"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1457K1601	1457 Series

Area (L x W)	-	8.5 - 29 in˛
Area (L x W)	-	54.8 - 187 cm˛
Area (L x W)	-	139 cm²
Area (L x W)	-	21.5 in²
Area (L x W) [custom]	22.8 in²	22.8 in²
Area (L x W) [custom]	147 cm²	147 cm²
Color	Natural	Black, Natural
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Drive Type	-	Phillips
Features	Card Guides, Watertight	Gasket, IP65, Watertight, Mounting Flange, Card Guides, EMI Shielded, IP54, EMI Gasket, Self Sealing, Self Tapping
For Use With/Related Products	-	1457 Series
Height	-	1.26 in
Height	-	32 mm
Height [z]	1.855 in	1.237 - 2.308 in
Height [z]	47.12 mm	31.43 - 58.62 mm
Material	Aluminum	Aluminum
Plating	-	Black Oxide
Ratings	IP65	IP65, IP54
Screw Head Type	-	Pan Head
Size / Dimension	-	4.252 in
Size / Dimension	-	2.308 in
Size / Dimension	-	86.96 mm
Size / Dimension	-	130.75 mm
Size / Dimension [x]	169.32 mm	5.148 - 173 mm
Size / Dimension [x]	6.666 in	2.441 - 6.811 in
Size / Dimension [y]	87 mm	3.424 - 108 mm
Size / Dimension [y]	3.425 in	1.336 - 4.252 in
Thickness	1.52 mm	1.52 mm
Thickness	0.06 in	0.06 in
Thread Size	-	#6-32
Type	-	Panel, End, Machine Screw
Weight	-	0.24 - 0.85 lb
Weight	-	108.86 - 385.55 g

1457 Series

FLANGED WATERTIGHT END PANELS

...

Part	Color	Type	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	For Use With/Related Products	Container Type	Size / Dimension [y]	Size / Dimension [x]	Design	Area (L x W)	Area (L x W)	Thickness	Thickness	Ratings	Height [z]	Height [z]	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [x]
Hammond Manufacturing 1457NWPF	Black	Panel, End	Aluminum	4.252 in	58.61 mm	108 mm	2.308 in	Gasket, IP65	1457 Series
Hammond Manufacturing 1457N1602BK	Black		Aluminum		108 mm	173 mm		Card Guides, Mounting Flange, Watertight		Box	4.252 in	6.811 in	End Panel(s)	29 in˛	187 cm˛	1.52 mm	0.06 in	IP65	58.62 mm	2.308 in
Hammond Manufacturing 1457N1201E	Natural		Aluminum		108 mm	129.01 mm		Card Guides, EMI Shielded, Watertight		Box	4.252 in	5.079 in	End Panel(s)			1.52 mm	0.06 in	IP54	58.62 mm	2.308 in	0.7 lb	317.51 g	139 cm²	21.5 in²
Hammond Manufacturing 1457CWP	Black	Panel, End	Aluminum		33.93 mm	62 mm		Gasket, IP65	1457 Series		1.336 in	2.441 in
Hammond Manufacturing 1457K1201	Natural		Aluminum		87 mm	130 mm		Card Guides, Watertight		Box	3.425 in	5.118 in	End Panel(s)	17.5 in˛	113 cm˛	1.52 mm	0.06 in	IP65	47.12 mm	1.855 in
Hammond Manufacturing 1457J1202EBK	Black		Aluminum		3.424 in	5.148 in		Card Guides, EMI Shielded, Mounting Flange, Watertight		Box			End Panel(s)	17.6 in²	114 cm²	1.52 mm	0.06 in	IP54	31.48 mm	1.239 in					86.96 mm	130.75 mm
Hammond Manufacturing 1457J1602BK	Black		Aluminum		86.96 mm	170.75 mm		Card Guides, Mounting Flange, Watertight		Box	3.424 in	6.722 "	End Panel(s)	23 in²	148 cm²	1.52 mm	0.06 in	IP65	31.48 mm	1.239 in
Hammond Manufacturing 1457J1202	Natural		Aluminum		3.424 in	5.148 in		Card Guides, Mounting Flange, Watertight		Box			End Panel(s)	17.6 in²	114 cm²	1.52 mm	0.06 in	IP65	31.48 mm	1.239 in					86.96 mm	130.75 mm
Hammond Manufacturing 1457J1201EBK	Black		Aluminum		86.96 mm	131.15 mm		Card Guides, EMI Shielded, Watertight		Box	3.424 in	5.163 "	End Panel(s)	17.6 in²	114 cm²	1.52 mm	0.06 in	IP54	31.43 mm	1.237 in
Hammond Manufacturing 1457J1601EBK	Black		Aluminum		86.96 mm	171.15 mm		Card Guides, EMI Shielded, Watertight		Box	3.424 in	6.738 "	End Panel(s)	23.1 in²	149 cm²	1.52 mm	0.06 in	IP54	31.43 mm	1.237 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.06

Description

General part information

1457 Series

Box Aluminum Natural End Panel(s) 6.666" L x 3.425" W (169.32mm x 87.00mm) X 1.855" (47.12mm)

Documents

Technical documentation and resources

No documents available
