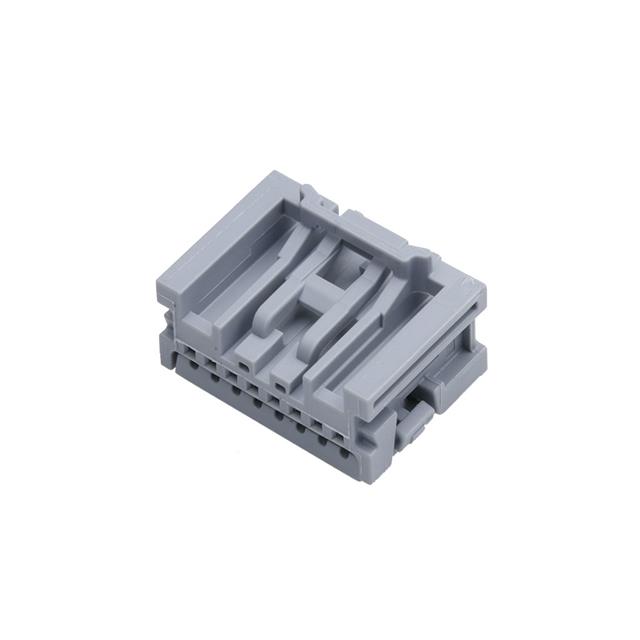

Specification	0347910181

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in

034791 Series

Part	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Connector Type	Contact Termination	Number of Positions	Pitch	Mounting Type	Fastening Type	Number of Rows	Color	Note	Features
Molex 0347910042	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	4	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Brown	Contacts Not Included
Molex 0347910022	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Brown	Contacts Not Included
Molex 0347915182	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	8	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Gray	Contacts Not Included	Connector Position Assurance (CPA)
Molex 0347910141	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	4	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Gray
Molex 0347915143	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	4	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Green	Contacts Not Included	Connector Position Assurance (CPA)
Molex 0347910023	Female Socket	-40 °C	105 °C	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Green		Waterproof
Molex 0347910140	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	4	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Black	Contacts Not Included	Bridged
Molex 0347910182	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	8	0.079 in	Free Hanging (In-Line)	Latch Lock	1	Gray
Molex 0347915181	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	8	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Gray	Contacts Not Included	Connector Position Assurance (CPA)
Molex 0347915141	Female Socket	-40 °C	105 °C	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	4	0.079 in	Free Hanging (In-Line)	Latch Holder	1	Gray	Contacts Not Included	Connector Position Assurance (CPA)
