Technical Specifications
Parameters and characteristics for this part
| Specification | 850E |
|---|---|
| DC Resistance (DCR) - Primary | 27 Ohm |
| DC Resistance (DCR) - Secondary | 68 Ohm |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 20 Hz |
| Frequency Response Tolerance | 0.5 dB |
| Height - Seated (Max) | 1.65 in |
| Impedance - Primary (Ohms) | 200 Ohms |
| Impedance - Primary (Ohms) Maximum | 50 Ohms |
| Impedance - Primary (Ohms) Minimum | 50 Ohms |
| Impedance - Secondary (Ohms) (Max) | 150 Ohms |
| Impedance - Secondary (Ohms) (Min) | 150 Ohms |
| Impedance - Secondary (Ohms) (Value 1) | 600 Ohms |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Power Level | 15 dB |
| Size / Dimension Length | 1.7 in |
| Size / Dimension Width | 1.2 in |
| Termination Style | Solder Lug |
| Transformer Type | Broadcast Quality |
| Weight | 0.4 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
CAD
3D models and CAD resources for this part
Description
General part information

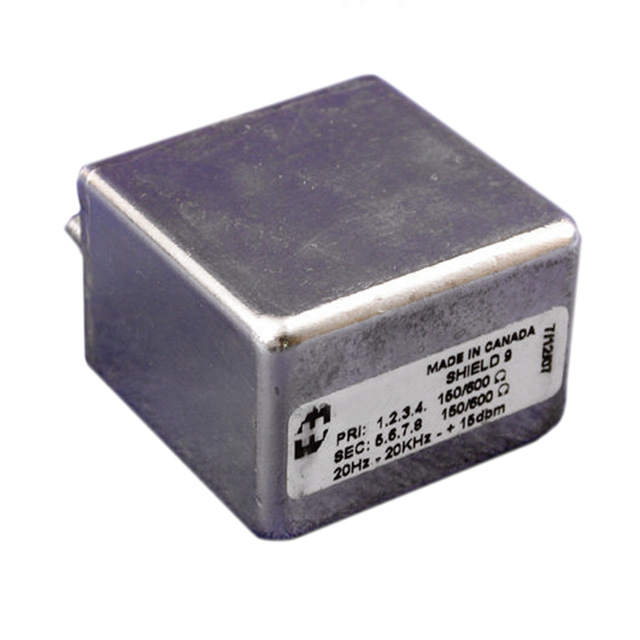

850E
200, 50/50 Impedance Primary Ohms 600, 150/150 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
