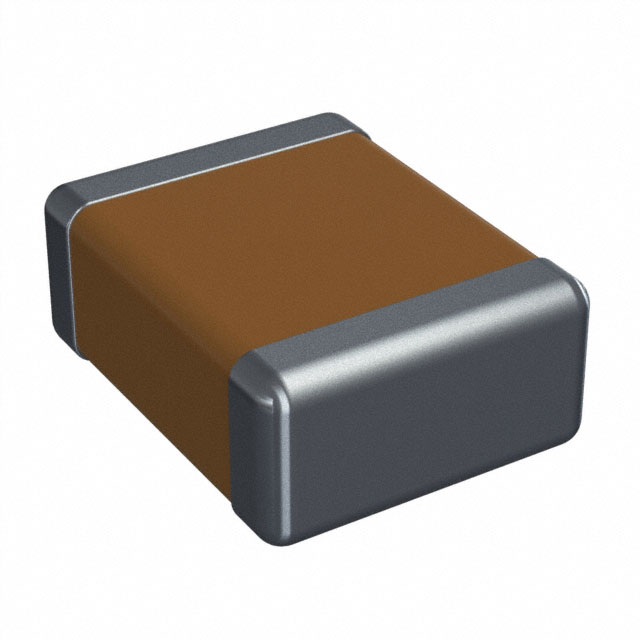

CDR33BX273BKUSAJ - 1210 (3225 Metric) 1,25mm

CDR33BX273BKUSAJ

Active
Vishay Vitramon

CAP CER 0.027UF 100V BX 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
CDR33BX273BKUSAJ - 1210 (3225 Metric) 1,25mm

CDR33BX273BKUSAJ

Active
Vishay Vitramon

CAP CER 0.027UF 100V BX 1210

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationCDR33BX273BKUSAJCDR33 Series
ApplicationsHigh ReliabilityHigh Reliability
Capacitance0.027 µF0.001 - 100000 pF
Failure RateS (0.001%)R (0.01%), P, S (0.001%), M (1%)
Mounting TypeSurface Mount, MLCCSurface Mount, MLCC
Operating Temperature [Max]125 °C125 °C
Operating Temperature [Min]-55 °C-55 °C
Package / Case12101210
Package / Case3225 Metric3225 Metric
Size / Dimension [x]3.2 mm3.2 mm
Size / Dimension [x]0.126 in0.126 in
Size / Dimension [y]2.5 mm2.5 mm
Size / Dimension [y]0.098 in0.098 in
Temperature CoefficientBXBX, BP
Thickness (Max) [Max]1.25 mm1.25 mm
Thickness (Max) [Max]0.049 "0.049 "
Tolerance10 %1 - 20 %
Voltage - Rated100 V50 - 100 VDC

CDR33 Series

CAP CER 0.047UF 50V BX 1210

PartThickness (Max) [Max]Thickness (Max) [Max]ToleranceOperating Temperature [Min]Operating Temperature [Max]Package / CasePackage / CaseVoltage - RatedFailure RateTemperature CoefficientApplicationsSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]Mounting TypeCapacitance
Vishay Vitramon
CDR33BX473AKWRAC
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
R (0.01%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
Vishay Vitramon
CDR33BX104AKYRAJ
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
R (0.01%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
100000 pF
Vishay Vitramon
CDR33BX223BKZRAT
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
100 V
R (0.01%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
0.022 µF
Vishay Vitramon
CDR33BP152BFURAJ
1.25 mm
0.049 "
1 %
-55 °C
125 °C
1210
3225 Metric
100 V
R (0.01%)
BP
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
1500 pF
Vishay Vitramon
CDR33BX104AKWPAJ
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
P
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
100000 pF
Vishay Vitramon
CDR33BX104AKMSAJ
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
S (0.001%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
100000 pF
Vishay Vitramon
CDR33BX104AKUSAB
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
S (0.001%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
100000 pF
Vishay Vitramon
CDR33BX683AKZMAT
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
M (1%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
0.068 µF
Vishay Vitramon
CDR33BX683AKURAJ
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
R (0.01%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount
0.068 µF
Vishay Vitramon
CDR33BX473AKWSAJ
1.25 mm
0.049 "
10 %
-55 °C
125 °C
1210
3225 Metric
50 VDC
S (0.001%)
BX
High Reliability
3.2 mm
2.5 mm
0.126 in
0.098 in
MLCC, Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 2000$ 0.53

Description

General part information

CDR33 Series

0.027 µF ±10% 100V Ceramic Capacitor BX 1210 (3225 Metric)
