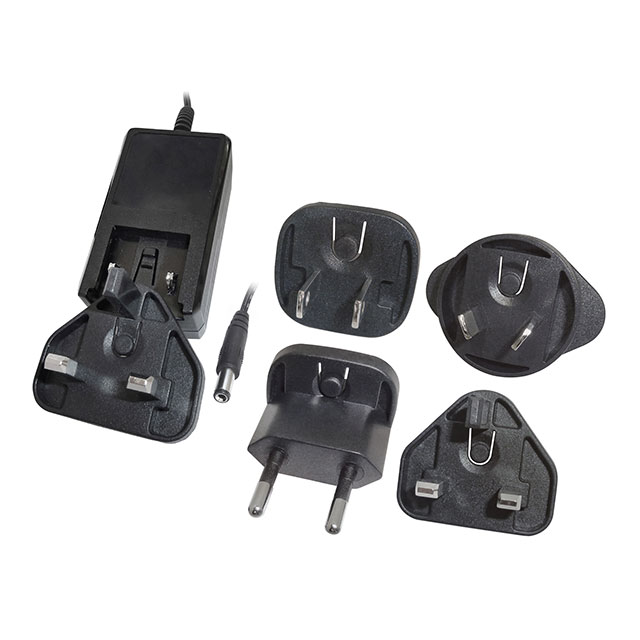

25HK-AW-240A063-CP

Obsolete

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 24V 15W

Search across all available documentation for this part.

Obsolete

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 24V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	25HK-AW-240A063-CP

Applications	ITE (Commercial)
Approval Agency	CE, GS, RCM, TUV, CB, cULus, FCC, PSE, CCC
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	630 mA
Efficiency	84.17 %
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Power DIN, 2 Pin
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	2.81 "
Size / Dimension [x]	71.4 mm
Size / Dimension [y]	41 mm
Size / Dimension [y]	1.61 "
Size / Dimension [z]	34.3 mm
Size / Dimension [z]	1.35 "
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

AC/DC WALL MOUNT ADAPTER 24V 15W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Form	Power (Watts)	Current - Output (Max) [Max]	Applications	Efficiency	Output Connector	Voltage - Output	Region Utilized	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Cord Length	Cord Length	Input Type	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]
IDEAL POWER 25HK-AW-240A063-CP	90 VAC	264 VAC	60950-1	Wall Mount (Class II)	15 W	630 mA	ITE (Commercial)	84.17 %	Power DIN, 2 Pin	24 V	International	CB, CCC, CE, cULus, FCC, GS, PSE, RCM, TUV	41 mm	34.3 mm	1.61 "	2.81 "	1.35 "	71.4 mm	Multi-Blade (Included)	1.83 m	72 in	Multi-Blade (Included)	100 mW	40 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical documentation and resources

No documents available
