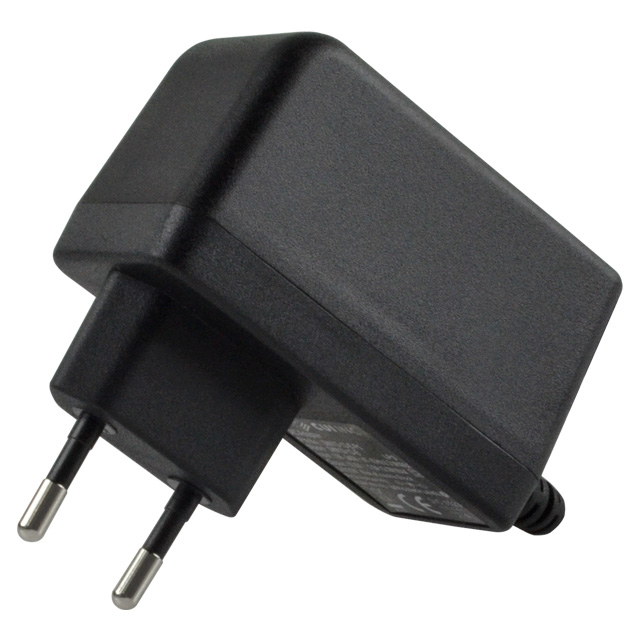

SWI12-9-E-P6

SWI12-9-E-P6

Active
CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 11W

Find alt
SWI12-9-E-P6

SWI12-9-E-P6

Active
CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 11W

Find alt

Description

General part information

SWI12 Series

9V 11 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical Specifications

Parameters and characteristics for this part

SpecificationSWI12-9-E-P6
ApplicationsITE (Commercial)
Approval AgencyIEC, EN, CB Scheme
Cord Length59 in
Current - Output (Max)1.2 A
EfficiencyLevel VI, CoC Tier 2
FormWall Mount (Class II)
Input ConnectorCEE 7/16
Input TypeFixed Blade
No Load Power Consumption (Max)75 mW
Operating Temperature (Max)40 °C
Operating Temperature (Min)0 °C
Output ConnectorBarrel Plug
Output Connector I.D.2.5 mm
Output Connector Length9.5 mm
Output Connector O.D.5.5 mm
PolarizationPositive Center
Power (Watts)11 W
Region UtilizedEurope
Size / Dimension Height2.38 in
Size / Dimension Length2.83 in
Size / Dimension Width1.34 in
Standard Number60950-1, 55032 Class B, 61000-3-2, 61000-3-3, 55024
Voltage - Input (AC) Maximum264 V
Voltage - Input (AC) Minimum90 V
Voltage - Output9 V
Weight0.278 lb
