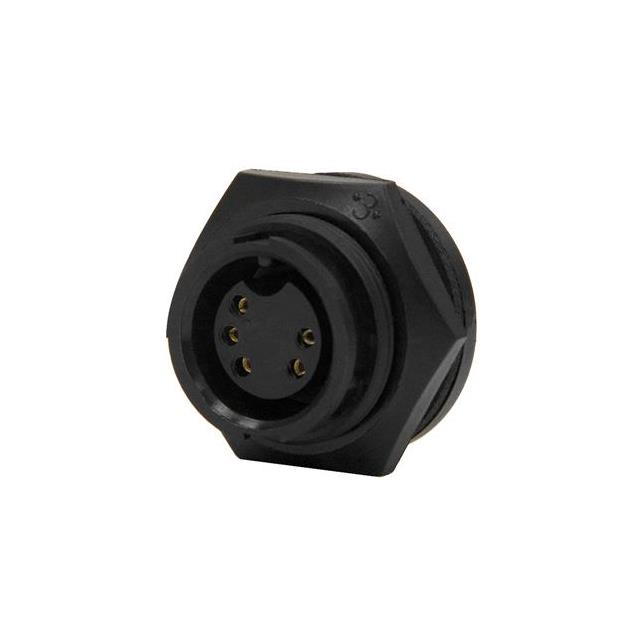

4281-5SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4281-5SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4281-5SG-300 | 4281-5S Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
4281-5S Series
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Primary Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Contact Finish - Mating | Mounting Type | Connector Type | Color | Mounting Feature | Fastening Type | Voltage Rating | Ingress Protection | Contact Material | Termination | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4281-5SG-3ES | Plastic | 5.6 A | -40 °C | 115 °C | Keyed | Gold | Panel Mount, Through Hole | Receptacle, Female Sockets | Black | Bulkhead - Front Side Nut | Bayonet Lock | 600 V | Weathertight | Brass | Solder | Unshielded |
Conxall/Switchcraft 4281-5SG-300 | Plastic | 5.6 A | -40 °C | 115 °C | Keyed | Gold | Panel Mount, Through Hole | Receptacle, Female Sockets | Black | Bulkhead - Front Side Nut | Bayonet Lock | 600 V | Weathertight | Brass | Solder | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.49 | |
Description
General part information
4281-5S Series
5 Position Circular Connector Receptacle, Female Sockets Solder
