Description
General part information

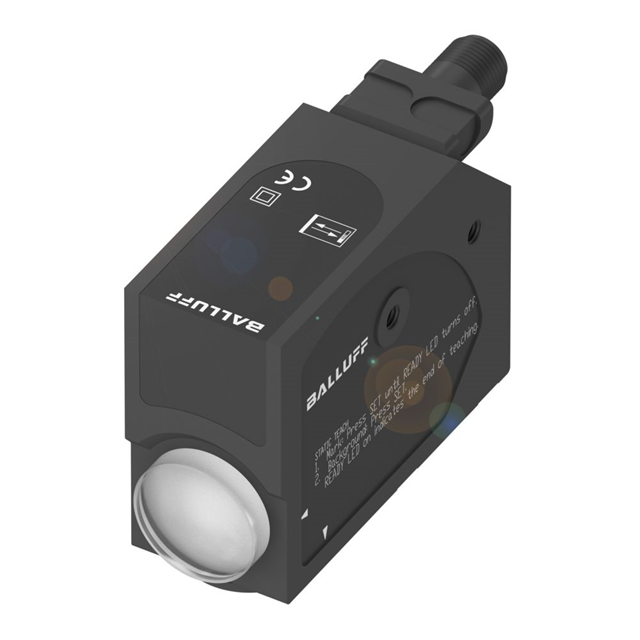

BKT0001
Diffuse Optical Sensor 0.236" ~ 0.472" (6mm ~ 12mm) NPN/PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | BKT0001 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Blue, Red, Green |
| Light Source Wavelength (Blue) | 465 nm |
| Light Source Wavelength (Green) | 520 nm |
| Light Source Wavelength (Red) | 630 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NO, NPN, PNP-NC |
| Sensing Distance Maximum | 0.472 " |
| Sensing Distance Minimum | 0.236 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
