M3235GBH

Active

Heyco Products Corporation

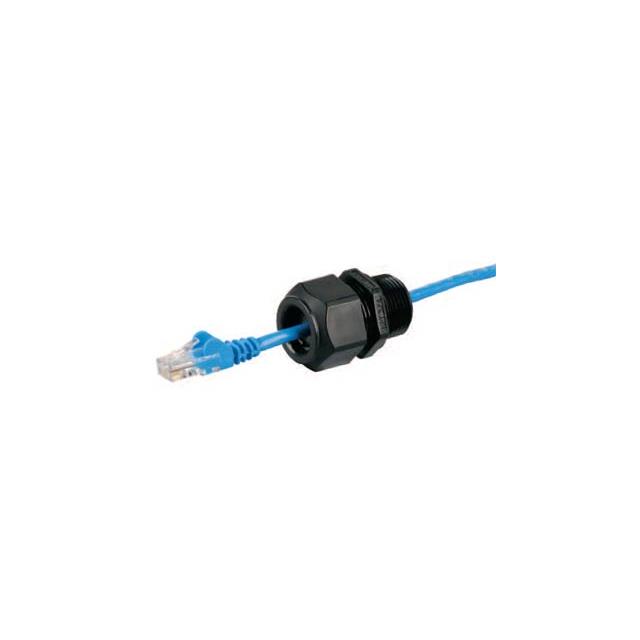

CABLE GRIP 5.33-8.48MM 3/4" NPT

Search across all available documentation for this part.

Active

Heyco Products Corporation

CABLE GRIP 5.33-8.48MM 3/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	M3235GBH

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8.48 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.334 in
Outside Cable Diameter (Min) [Min] [diameter]	0.21 in
Outside Cable Diameter (Min) [Min] [diameter]	5.33 mm
Panel Hole Size	26.4 mm
Panel Hole Size	1.04 in
Thread Length	15.75 mm
Thread Length	0.62 in
Thread Size	3/4 NPT
Type	Cable Grip - Split

CABLE GRIP 5.33-8.48MM 3/4" NPT

Part	Ingress Protection	Thread Length	Thread Length	Color	Thread Size	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Heyco Products Corporation M3235GBH	IP68 - Dust Tight, Waterproof	15.75 mm	0.62 in	Black	3/4 NPT	26.4 mm	1.04 in	8.48 mm	0.334 in	-40 °C	115 °C	Polyamide (PA66), Nylon 6/6	Cable Grip - Split	0.21 in	5.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Grip - Split Polyamide (PA66), Nylon 6/6 3/4" NPT Black

Technical documentation and resources

No documents available
