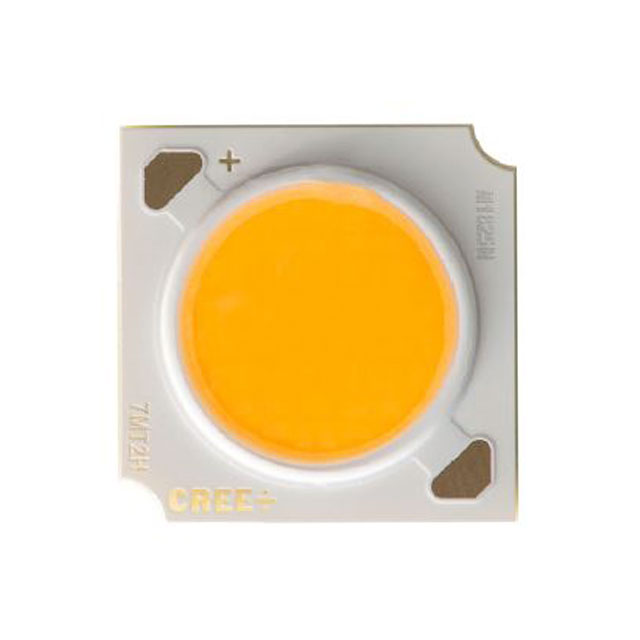

CMA1825-0000-000N0H0A57E

Active

Cree LED

XLAMP CMA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA1825-0000-000N0H0A57E

Active

Cree LED

XLAMP CMA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.28
		10	$ 7.87
		50	$ 7.64
		100	$ 7.04
		200	$ 6.40
		500	$ 5.99
		1000	$ 5.52
Newark	Each	100	$ 6.96
		250	$ 5.80
		500	$ 5.63

Description

General part information

CMA1825 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA1825 White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMA1825-0000-000N0H0A57E	CMA1825 Series

CCT (K)	5700 K	2200 - 5700 K
Color	Cool, White	Neutral, White, Warm, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 95
Current - Max [Max]	1.6 A	1.067 - 1.6 A
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	12 mm	12 mm
Lumens/Watt @ Current - Test	153 lm/W	103 - 158 lm/W
Luminous Flux @ Current/Temperature	3706 lm	2497 - 3823 lm
Size / Dimension [x]	17.85 mm	17.85 mm
Size / Dimension [y]	17.85 mm	17.85 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	34.6 V	34.6 V

CMA1825 Series

LED COB XLAMP NEUT WHT SQU 4000K

Part	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Type	Color	Current - Max [Max]	Temperature - Test	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Viewing Angle	CCT (K)	CRI (Color Rendering Index)	Lens Type
Cree LED CMA1825-0000-00PN0U0A40H	34.6 V	Square	3273 lm	Chip On Board (COB)	Neutral, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	135 lm/W	115 °	4000 K	90	Flat
Cree LED CMA1825-0000-000N0Z0A30H	34.6 V	Square	2497 lm	Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	103 lm/W	115 °	3000 K	95	Flat
Cree LED CMA1825-0000-000N0H0A50G	34.6 V	Square	3598 lm	Chip On Board (COB)	Cool, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	149 lm/W	115 °		80	Flat
Cree LED CMA1825-0000-00PN0Z0A30H	34.6 V	Square	2700 lm	Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	111 lm/W	115 °	3000 K	95	Flat
Cree LED CMA1825-0000-00PN0U0A30G	34.6 V	Square	3202 lm	Chip On Board (COB)	Warm, White	1.067 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	132 lm/W	115 °	3000 K	90	Flat
Cree LED CMA1825-0000-000N0H0A30G	34.6 V	Square	3370 lm	Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	139 lm/W	115 °	3000 K	80	Flat
Cree LED CMA1825-0000-000N0H0A40H	34.6 V	Square	3557 lm	Chip On Board (COB)	Neutral, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	147 lm/W	115 °	4000 K	80	Flat
Cree LED CMA1825-0000-000N0B0A30E	34.6 V	Square	3557 lm	Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	147 lm/W	115 °	3000 K	70	Flat
Cree LED CMA1825-0000-00PN0U0A31Q	34.6 V	Square		Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm		115 °	3100 K	90	Flat
Cree LED CMA1825-0000-000N0U0A30U	34.6 V	Square	2849 lm	Chip On Board (COB)	Warm, White	1.6 A	85 °C	1.7 mm	17.85 mm	17.85 mm	12 mm	118 lm/W	115 °	3000 K	90	Flat
