226BJVAER

Active

CTS Electrocomponents

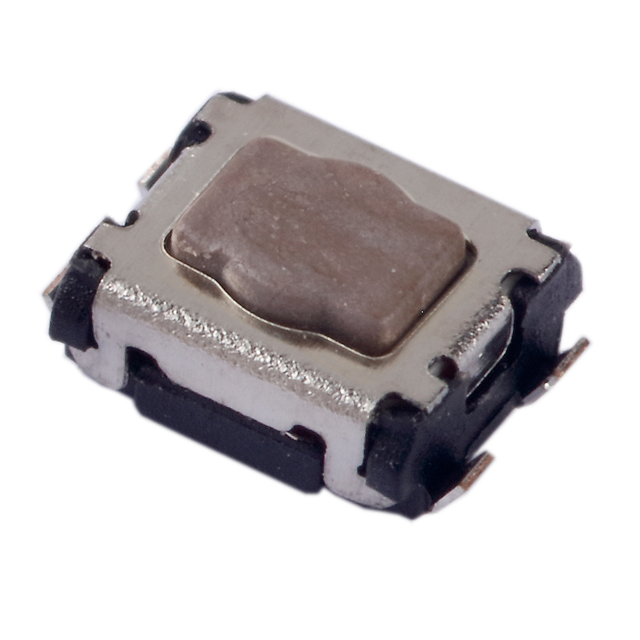

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

226BJVAER

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 0.19

Description

General part information

226BJV Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	226BJVAER	226BJV Series

Actuator Height off PCB, Vertical	1.7 mm	1.7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback, Grounding Pin
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	500000 Cycles	200000 - 1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	0.5 kgf	0.5 - 350 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	3.5 mm	3.5 mm
Outline [y]	2.9 mm	2.9 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.15 mm	0.15 mm
Termination Style	J Lead	J Lead

226BJV Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Actuator Height off PCB, Vertical	Mounting Type	Outline [y]	Outline [x]	Switch Function	Mechanical Life	Operating Force	Illumination	Circuit	Actuator Orientation	Features
CTS Electrocomponents 226BJVAARG	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	1000000 Cycles	100 gf	Non-Illuminated	SPST-NO	Top Actuated	Grounding Pin, Tactile Feedback
CTS Electrocomponents 226BJVACR	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	200000 Cycles	200 gf	Non-Illuminated	SPST-NO	Top Actuated	Tactile Feedback
CTS Electrocomponents 226BJVADRG	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	200000 Cycles	350 gf	Non-Illuminated	SPST-NO	Top Actuated	Grounding Pin, Tactile Feedback
CTS Electrocomponents 226BJVADR	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	200000 Cycles	350 gf	Non-Illuminated	SPST-NO	Top Actuated	Tactile Feedback
CTS Electrocomponents 226BJVAER	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	500000 Cycles	0.5 kgf	Non-Illuminated	SPST-NO	Top Actuated	Tactile Feedback
CTS Electrocomponents 226BJVAERG	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	500000 Cycles	0.5 kgf	Non-Illuminated	SPST-NO	Top Actuated	Grounding Pin, Tactile Feedback
CTS Electrocomponents 226BJVABR	0.15 mm	0.05 A, 12 VDC	85 °C	-40 °C	J Lead	Standard	1.7 mm	Surface Mount	2.9 mm	3.5 mm	Off-Mom	200000 Cycles		Non-Illuminated	SPST-NO	Top Actuated	Tactile Feedback
