FAKRA Series

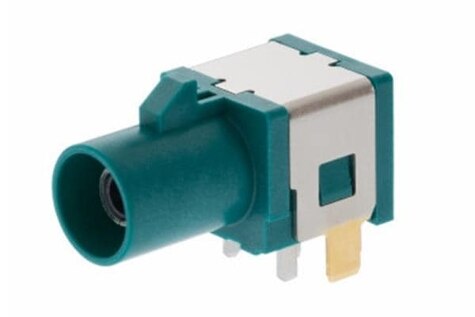

RF Connectors / Coaxial Connectors FAKRA JACK R/A EMBSTP PKG KEY-F

Part	Mounting Type	Fastening Type	Connector Style	Housing Color	Connector Type	Center Contact Material	Number of Ports	Impedance	Frequency - Max	Features	Contact Termination	Shield Termination	Features - Code	Center Contact Plating	Dielectric Material	Voltage Rating	Body Material	Operating Temperature (Min)	Operating Temperature (Max)
Molex 2011260008	Right Angle Through Hole	Locking Ramp	Fakra SMB	Violet	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code H	Solder	Solder
Molex 2011260006	Right Angle Through Hole	Locking Ramp	Fakra SMB	Brown	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code F	Solder	Solder
Molex 2011260012	Right Angle Through Hole	Locking Ramp	Fakra SMB	Red	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code L	Solder	Solder
Molex 2011260005	Right Angle Through Hole	Locking Ramp	Fakra SMB	Green	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code E	Solder	Solder	E
Molex 2011260003	Right Angle Through Hole	Locking Ramp	Fakra SMB	Blue	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code C	Solder	Solder
Molex 2011260002	Right Angle Through Hole	Locking Ramp	Fakra SMB	Cream White	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code B	Solder	Solder		Gold	Glass Filled Liquid Crystal Polymer (LCP)	60 V	Phosphor Bronze	-40 °C	105 °C
Molex 2011260013	Right Angle Through Hole	Locking Ramp	Fakra SMB	Orange	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code M	Solder	Solder		Gold	Glass Filled Liquid Crystal Polymer (LCP)	60 V	Phosphor Bronze	-40 °C	105 °C
Molex 2011260004	Right Angle Through Hole	Locking Ramp	Fakra SMB	Violet	Jack Male Pin	Brass	1	50 Ohm	6000 MHz	Code D	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
