786554-7
ActiveTE Connectivity AMP Connectors

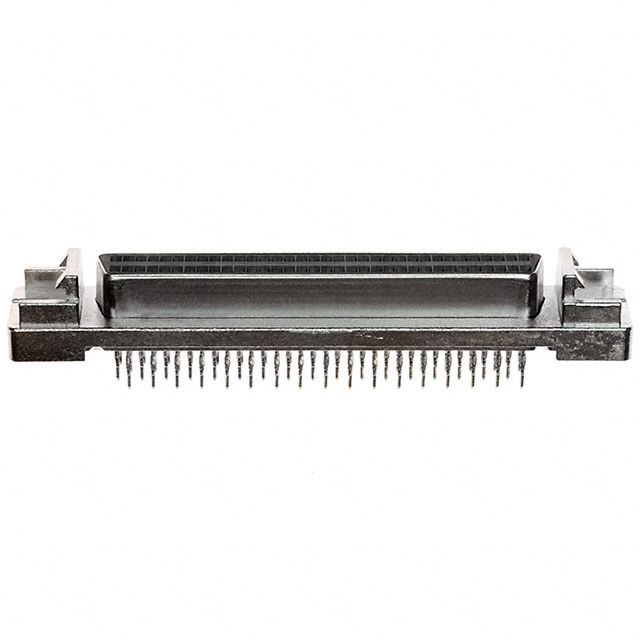

CONN D-TYPE RCPT 68P VERT PRESS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
786554-7
ActiveTE Connectivity AMP Connectors
CONN D-TYPE RCPT 68P VERT PRESS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 786554-7 | 786554 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Dielectric Material | Polyphthalamide (PPA) | Polyphthalamide (PPA) |
| Features | Shielded | Shielded |
| Flange Feature | Latchblocks, Housing/Shell (2-56), Rails | Latchblocks, Housing/Shell (2-56), Rails |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 68 | 20 - 100 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout [x] | 0.05 | 0.05 |
| Shell Size, Connector Layout [y] | 0.1 | 0.1 |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 30 VDC | 30 VDC |
786554 Series
CONN D-TYPE RCPT 68P VERT PRESS
| Part | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [y] | Connector Style | Features | Number of Positions | Mounting Type | Dielectric Material | Color | Connector Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Shell Material, Finish | Flange Feature | Material Flammability Rating | Termination | Number of Rows | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 786554-7 | 0.05 | 0.1 | D-Type | Shielded | 68 | Through Hole | Polyphthalamide (PPA) | Black | Receptacle, Female Sockets | 30 VDC | 105 ░C | -55 °C | Gold | Nickel Plated, Steel | Housing/Shell (2-56), Latchblocks, Rails | UL94 V-0 | Press-Fit | 2 | Signal | Phosphor Bronze |
TE Connectivity AMP Connectors 786554-9 | 0.05 | 0.1 | D-Type | Shielded | 100 | Through Hole | Polyphthalamide (PPA) | Black | Receptacle, Female Sockets | 30 VDC | 105 ░C | -55 °C | Gold | Nickel Plated, Steel | Housing/Shell (2-56), Latchblocks, Rails | UL94 V-0 | Press-Fit | 2 | Signal | Phosphor Bronze |
TE Connectivity AMP Connectors 786554-1 | 0.05 | 0.1 | D-Type | Shielded | 20 | Through Hole | Polyphthalamide (PPA) | Black | Receptacle, Female Sockets | 30 VDC | 105 ░C | -55 °C | Gold | Nickel Plated, Steel | Housing/Shell (2-56), Latchblocks, Rails | UL94 V-0 | Press-Fit | 2 | Signal | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 504 | $ 14.33 | |
Description
General part information
786554 Series
68 Position D-Type Receptacle, Female Sockets Connector
