MMWA05W2K-F
ActiveCornell Dubilier Knowles

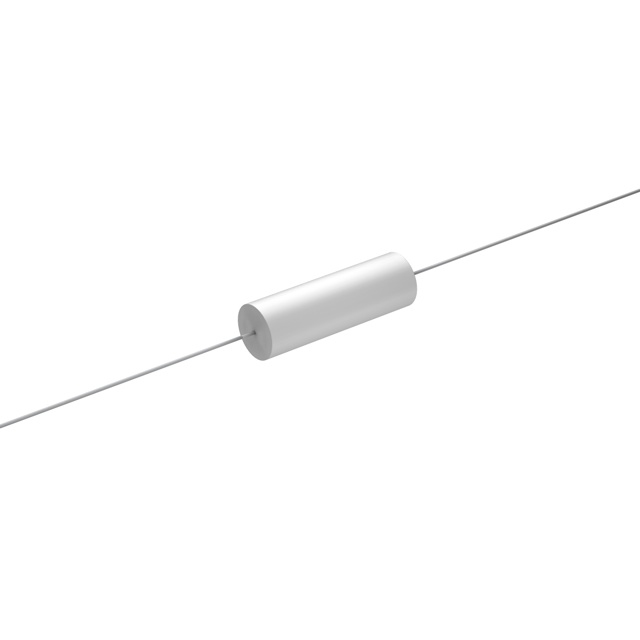

CAP FILM 2UF 10% 50VDC AXIAL
MMWA05W2K-F
ActiveCornell Dubilier Knowles
CAP FILM 2UF 10% 50VDC AXIAL
Description
General part information
MMWA05W2K-F
2 µF Film Capacitor 35V 50V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | MMWA05W2K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 2 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.402 in |
| Size / Dimension Length | 1.248 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 50 V |
