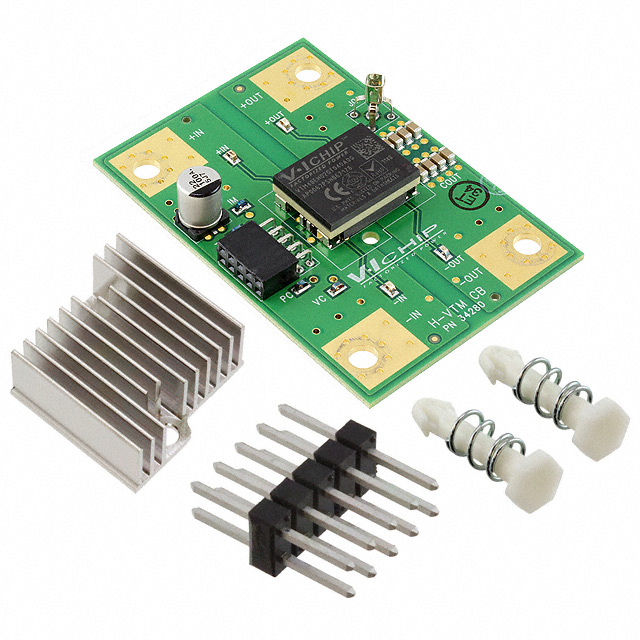

VTD48EH020T040A00

Active

Vicor Corporation

VTM CURRENT MULTIPLIER EVAL BOAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VTD48EH020T040A00

Active

Vicor Corporation

VTM CURRENT MULTIPLIER EVAL BOAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VTD48EH020T040A00

Board Type	Fully Populated
Current - Output	40 A
Frequency - Switching	1.8 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	73.2 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	VTM48EH020x040A00
Voltage - Input [Max]	55 V
Voltage - Input [Min]	26 V
Voltage - Output	1.83 V

VTD48E Series

Part	Frequency - Switching	Board Type	Current - Output	Voltage - Output	Regulator Topology	Power - Output	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Utilized IC / Part	Voltage - Output [Max]	Voltage - Output [Min]
Vicor Corporation VTD48EF040T050B00	1.43 MHz	Fully Populated	50 A	4 V	Buck	200 W	Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex040y050B00
Vicor Corporation VTD48EF030T070A00	1.43 MHz	Fully Populated	70 A	3 V	Buck	230 W	Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex030y070A00
Vicor Corporation VTD48EH120T010B00	1.5 MHz	Fully Populated	10 A	12 V	Buck	135 W	Isolated	1	DC/DC Step Down with LDO	26 V	55 V	Board(s)	VTM48EH120x010B00
Vicor Corporation VTD48EF015T115A00	1.4 MHz	Fully Populated	115 A		Buck		Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48EF015T115A	1.71 V	0.81 V
Vicor Corporation VTD48EF120T025A00	1.95 MHz	Fully Populated	25 A	12 V	Buck		Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex120y025A00
Vicor Corporation VTD48EF240T012A00	3.54 MHz	Fully Populated	12 A	24 V	Buck		Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex240y012A00
Vicor Corporation VTD48EF012T130A00	1.2 MHz	Fully Populated	130 A	1 V	Buck	130 W	Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48EF012T130A
Vicor Corporation VTD48EF060T040A00	1.21 MHz	Fully Populated	40 A	6 V	Buck	264 W	Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex060y040A00
Vicor Corporation VTD48EF160T015A00	1.65 MHz	Fully Populated	15 A	16 V	Buck		Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex160y015A00
Vicor Corporation VTD48EF020T080B00	1.6 MHz	Fully Populated	80 A	2 V	Buck	160 W	Isolated	1	DC/DC Step Down	26 V	55 V	Board(s)	VTM48Ex020y080B00

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 334.56

Description

General part information

VTD48E Series

VTM48EH020x040A00 VI Chip® VTM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board

Documents

Technical documentation and resources
