RNF1FTD820R
ActiveStackpole Electronics Inc
RES 820 OHM 1% 1W AXIAL
RNF1FTD820R
ActiveStackpole Electronics Inc
RES 820 OHM 1% 1W AXIAL
Description
General part information
RNF1FTD820R

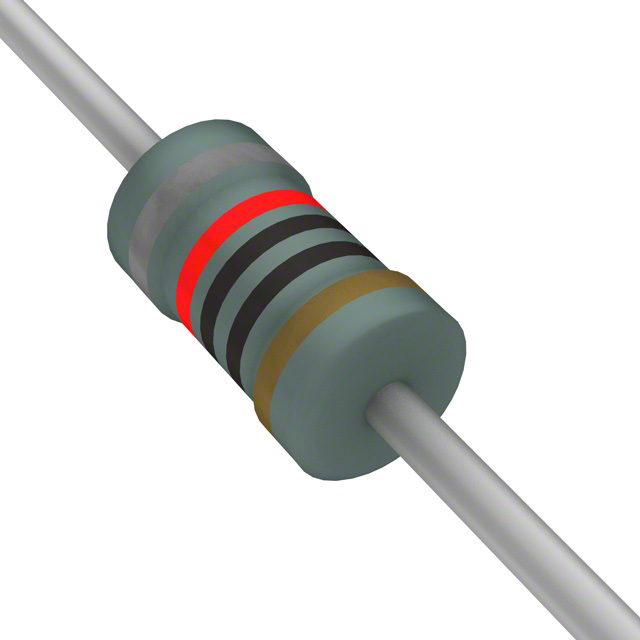

820 Ohms ±1% 1W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNF1FTD820R |
|---|---|
| Composition | Metal Film |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 820 Ohm |
| Size / Dimension Diameter | 0.177 in |
| Size / Dimension Length | 0.433 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
