F709089000
ActiveRadiall USA, Inc.
ST WATERPROOF SEALED CONNECTOR M
F709089000
ActiveRadiall USA, Inc.
ST WATERPROOF SEALED CONNECTOR M
Description
General part information
F709089000

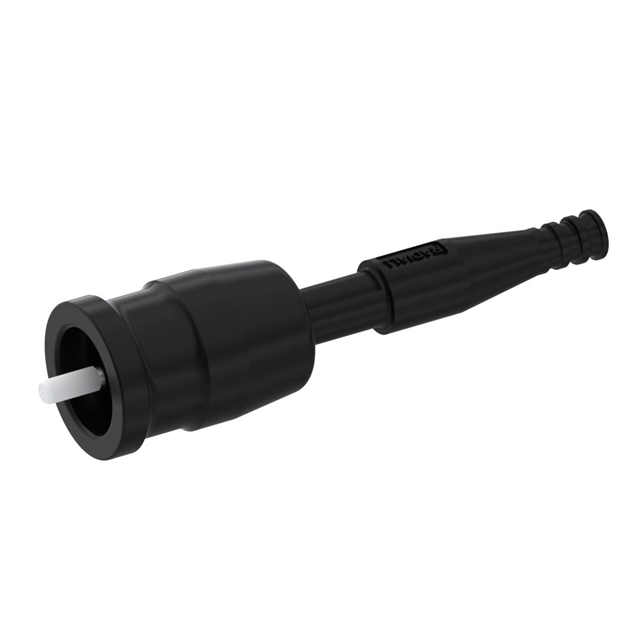

Fiber Optic Plug Connector ST Simplex 125µm Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | F709089000 |
|---|---|
| Attenuation (Typical) | -0.25 dB |
| Body Material | Brass |
| Boot Color | Black |
| Cable Diameter | 3 mm |
| Connector Style | ST |
| Connector Type | Plug |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ferrule Material | Zirconia, Ceramic |
| Fiber Cladding Diameter | 125 µm |
| Housing Color | Silver |
| Mating Cycles | 500 cycles |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Reflection | -30 dB |
| Simplex/Duplex | Simplex |
