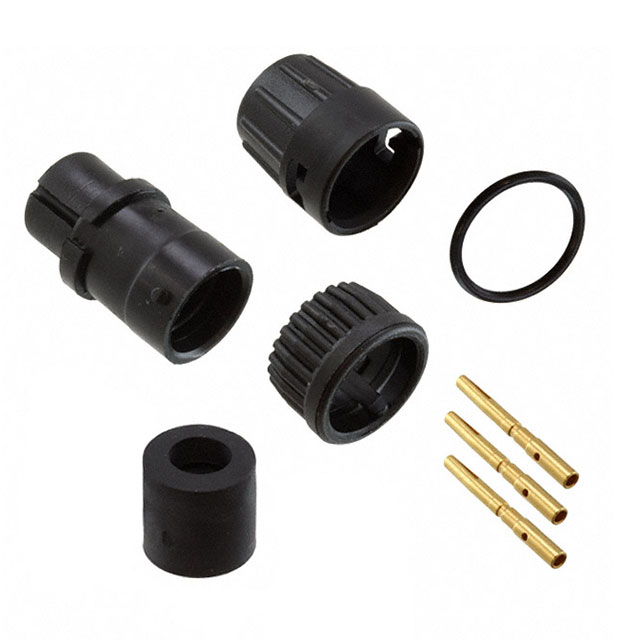

6280-3SG-315
ActiveConxall/Switchcraft
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6280-3SG-315
ActiveConxall/Switchcraft
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6280-3SG-315 | 6280-3SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 0.16 in |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 4.06 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6280-3SG Series
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Features | Ingress Protection | Applications | Shielding | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Termination | Current Rating (Amps) | Voltage Rating | Orientation | Contact Material | Backshell Material, Plating | Color | Mounting Type | Fastening Type | Connector Type | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6280-3SG-311 | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | Backshell | Weathertight | Automotive, Communication Systems, Instrumentation | Unshielded | Gold | -40 °C | 115 °C | Plastic | Crimp | Varies by Wire Gauge | 600 V | Keyed | Brass | Nylon, Polyamide (PA) | Black | Free Hanging (In-Line) | Bayonet Lock | Female Sockets, Plug | ||||||
Conxall/Switchcraft 6280-3SG-315 | Backshell | Weathertight | Automotive, Communication Systems, Instrumentation | Unshielded | Gold | -40 °C | 115 °C | Plastic | Crimp | Varies by Wire Gauge | 600 V | Keyed | Brass | Nylon, Polyamide (PA) | Black | Free Hanging (In-Line) | Bayonet Lock | Female Sockets, Plug | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||
Conxall/Switchcraft 6280-3SG-516 | Backshell | Weathertight | Automotive, Communication Systems, Instrumentation | Unshielded | Gold | -40 °C | 115 °C | Plastic | Crimp | Varies by Wire Gauge | 600 V | Keyed | Brass | Nylon, Polyamide (PA) | Black | Free Hanging (In-Line) | Bayonet Lock | Female Sockets, Plug | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.18 | |
| 10 | $ 4.68 | |||
| 25 | $ 4.42 | |||
| 50 | $ 4.32 | |||
| 100 | $ 4.10 | |||
| 300 | $ 3.80 | |||
Description
General part information
6280-3SG Series
3 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
