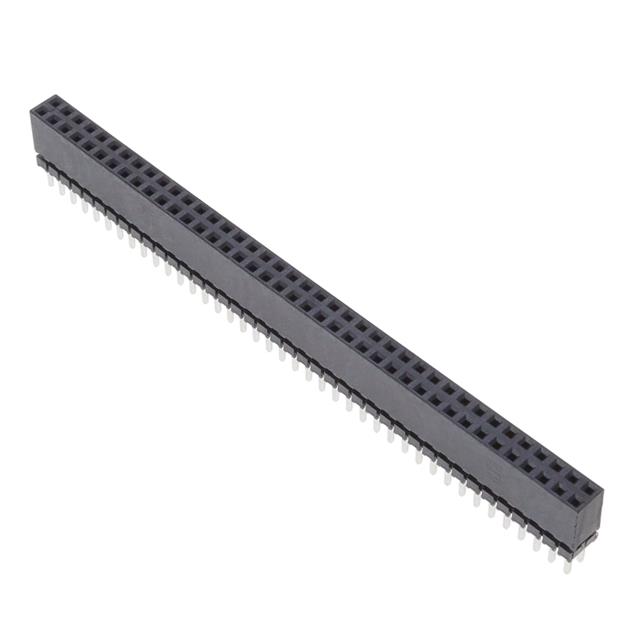

ESQT-140-03-M-D-330

Active

Samtec Inc.

CONN SOCKET 80POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESQT Series Other Related Documents 01 Datasheet +2

ESQT-140-03-M-D-330

Active

Samtec Inc.

CONN SOCKET 80POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsESQT Series Other Related Documents 01 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESQT-140-03-M-D-330

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.38 mm
Insulation Height	0.33 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

ESQT-140 Series

...

Part	Current Rating (Amps)	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Connector Type	Mounting Type	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Shape	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESQT-140-02-G-D-731	4.5 A	2	0.731 "	18.57 mm	0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Gold	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All	3 µin	0.076 µm	Push-Pull	UL94 V-0	3.02 mm	0.119 in	80
Samtec Inc. ESQT-140-02-GF-5-720	4.5 A	5			0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Gold	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All	3 µin	0.076 µm	Push-Pull	UL94 V-0	3.3 mm	0.13 in		18.3 mm	0.72 in
Samtec Inc. ESQT-140-03-M-D-330	4.5 A	2			0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0	3.25 mm	0.128 "	80	8.38 mm	0.33 in
Samtec Inc. ESQT-140-03-S-Q-310	4.5 A				0.76 Ám	30 Áin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0	3.76 mm	0.148 in	160	7.87 mm	0.31 in
Samtec Inc. ESQT-140-03-L-Q-338	4.5 A				0.25 çm	10 çin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0			160	8.59 mm	0.338 in	0.12 in	3.05 mm
Samtec Inc. ESQT-140-03-M-D-315	4.5 A	2			0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0			80	8 mm	0.315 in	0.143 in	3.63 mm
Samtec Inc. ESQT-140-03-G-Q-310	4.5 A				0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Gold	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All	3 µin	0.076 µm	Push-Pull	UL94 V-0	3.76 mm	0.148 in	160	7.87 mm	0.31 in
Samtec Inc. ESQT-140-02-L-D-530	4.5 A	2			0.25 çm	10 çin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0			80	13.46 mm	0.53 in	0.32 in	8.13 mm
Samtec Inc. ESQT-140-02-L-D-510	4.5 A	2			0.25 çm	10 çin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0			80	12.95 mm	0.51 in	0.34 in	8.64 mm
Samtec Inc. ESQT-140-03-M-D-340	4.5 A	2			0.51 µm	20 µin	Forked	Liquid Crystal Polymer (LCP)	Black	0.079 in	2 mm	Gold	Elevated Socket	Through Hole	Tin	Phosphor Bronze	-55 °C	125 °C	Board to Board Cable	Square	Solder	0.079 in	2 mm	All			Push-Pull	UL94 V-0	3 mm	0.118 in	80	8.64 mm	0.34 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.57
		10	$ 13.24
		100	$ 11.25
		500	$ 10.92
