Description
General part information
1412450

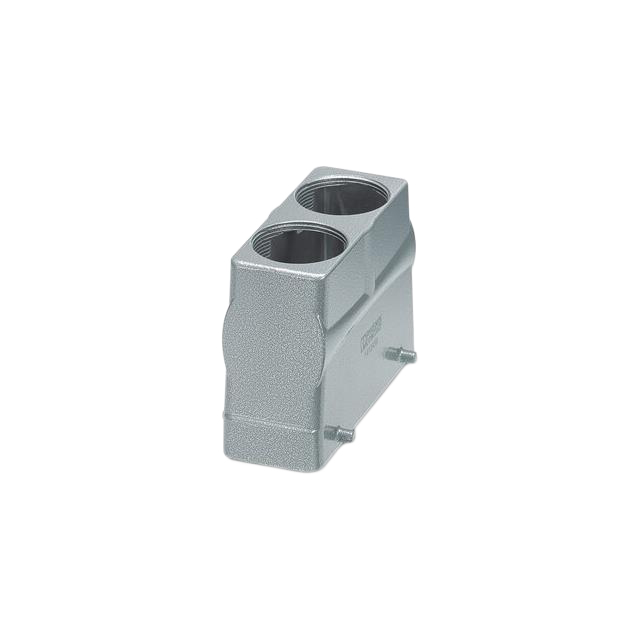

Hood Connector Top Entry, Dual M40 B24 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412450 |
|---|---|
| Connector Type | Hood |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 2.992 in |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 1.693 in |
| Style | Top Entry, Dual |
| Thread Size | M40 |
