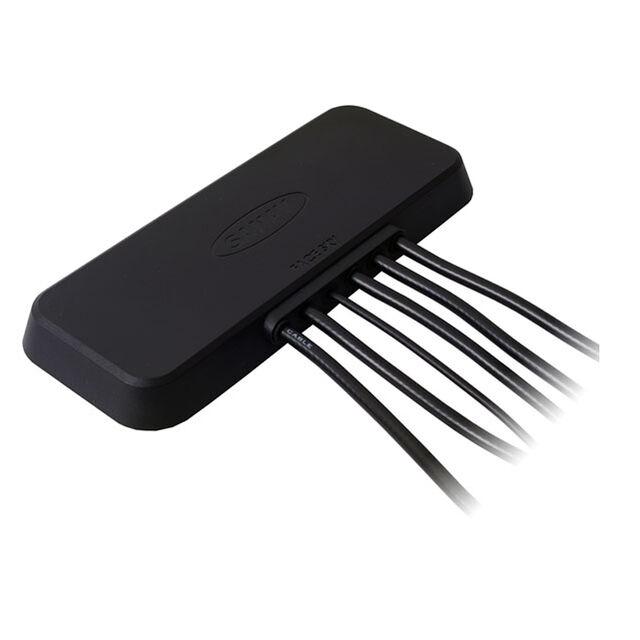

MT-15B-AS-BLLWWW01

Active

Unictron Technologies Corporation

6 IN 1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

Search across all available documentation for this part.

MT-15B-AS-BLLWWW01

Active

Unictron Technologies Corporation

6 IN 1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT-15B-AS-BLLWWW01

Antenna Type	Module
Applications	UMTS, 5G, Wi-Fi, GPS, GLONASS, LTE, GSM, GNSS, DCS, Galileo, Beidou, PCS
Frequency (Center/Band)	2.045 GHz, 5.5375 GHz, 1.795 GHz, 2.495 GHz, 1.561 GHz, 761 MHz, 5.8 GHz, 1.602 GHz, 892 MHz, 1.92 GHz, 2.4 GHz, 1.575 GHz, 3.55 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.17 GHz, 2.69 GHz, 1.563 GHz, 1.607 GHz, 1.576 GHz, 960 MHz, 5.15 GHz
Frequency Range [Min]	3.3 GHz, 698 MHz, 2.3 GHz, 1.597 GHz, 1.574 GHz, 1.71 GHz, 1.559 GHz
Gain	3.26 dBi, 5.31 dBi, 2.98 dBi, 3.93 dBi, 4.78 dBi, 1.44 dBi, 1.21 dBi, 3.1 dBi, 4.53 dBi, 3.62 dBi, 2.02 dBi, 3.57 dBi, 3.07 dBi, 2.74 dBi, 2.4 dBi, 4.94 dBi
Height (Max) [Max]	0.606 "
Height (Max) [Max]	15.4 mm
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands [custom]	13
Return Loss [Max]	-6 dB
Return Loss [Min]	-10 dB
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	2, 3

MT-15B Series

6 IN 1 COMBO EXTERNAL ANTENNA

Part	Height (Max) [Max]	Height (Max) [Max]	Applications	Return Loss [Max]	Return Loss [Min]	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Number of Bands [custom]	Mounting Type	Frequency (Center/Band)	Frequency Group	Ingress Protection	Antenna Type	Gain	VSWR
Unictron Technologies Corporation MT-15B-AS-BLLWWW01	0.606 "	15.4 mm	5G, Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi	-6 dB	-10 dB	1.559 GHz, 1.574 GHz, 1.597 GHz, 1.71 GHz, 2.3 GHz, 3.3 GHz, 698 MHz	1.563 GHz, 1.576 GHz, 1.607 GHz, 2.17 GHz, 2.69 GHz, 5.15 GHz, 960 MHz	Cellular, Navigation, WiFi	13	Adhesive	1.561 GHz, 1.575 GHz, 1.602 GHz, 1.795 GHz, 1.92 GHz, 2.045 GHz, 2.4 GHz, 2.495 GHz, 3.55 GHz, 5.5375 GHz, 5.8 GHz, 761 MHz, 892 MHz	Wide Band	IP67	Module	1.21 dBi, 1.44 dBi, 2.02 dBi, 2.4 dBi, 2.74 dBi, 2.98 dBi, 3.07 dBi, 3.1 dBi, 3.26 dBi, 3.57 dBi, 3.62 dBi, 3.93 dBi, 4.53 dBi, 4.78 dBi, 4.94 dBi, 5.31 dBi	2, 3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 119.29
		10	$ 113.64

Description

General part information

MT-15B Series

761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.5375GHz, 5.8GHz 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module RF Antenna 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.15GHz 2.4dBi, 2.74dBi, 1.21dBi, 1.21dBi, 1.44dBi, 3.57dBi, 4.53dBi, 3.26dBi, 2.02dBi, 3.07dBi, 2.98dBi, 4.94dBi, 4.78dBi, 3.62dBi, 5.31dBi, 3.93dBi, 3.1dBi SMA Male Adhesive

Documents

Technical documentation and resources

No documents available
