Technical Specifications
Parameters and characteristics for this part
| Specification | 9541 060U500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.284 in |
| Jacket (Insulation) Diameter [diameter] | 7.21 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 3.80 | |
Description
General part information
9541 Series

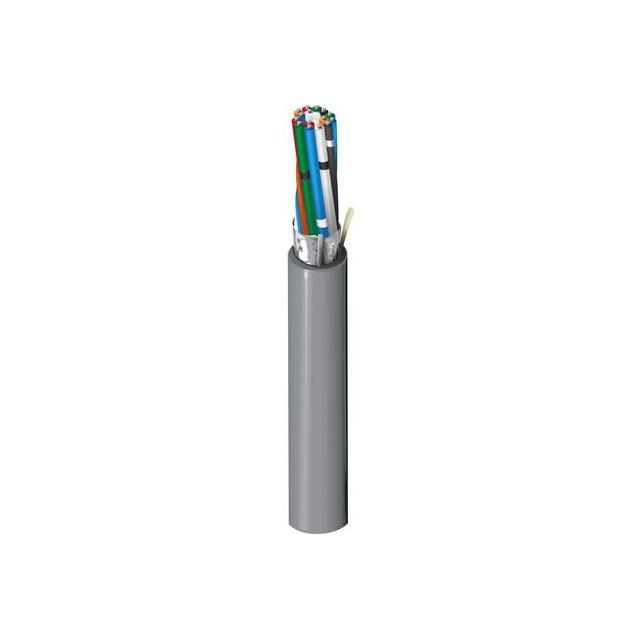

15 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 500.0' (152.4m)
