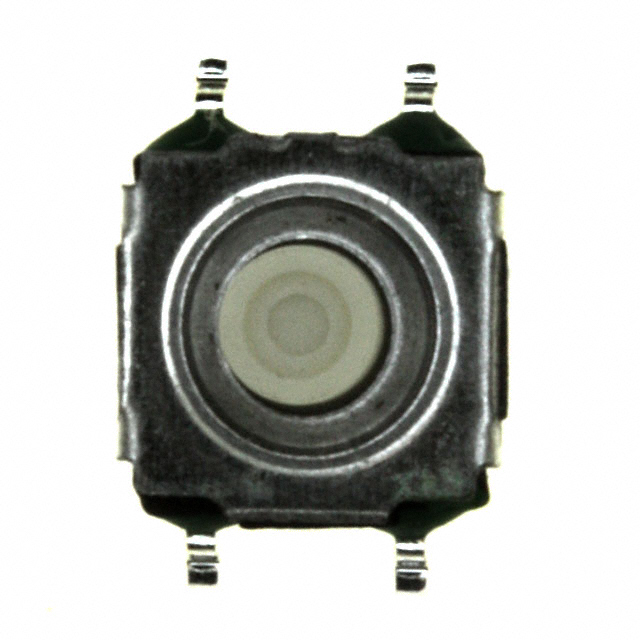

TL6120BF300QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL6120BF300QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL6120BF300QG |
|---|---|
| Actuator Height off PCB, Vertical | 5.2 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 7.4 mm |
| Outline [y] | 7.4 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.5 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| Digi-Reel® | 1 | $ 0.91 | ||
| Tape & Reel (TR) | 10500 | $ 0.44 | ||
Description
General part information
TL6120BF300QG
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
